Camshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

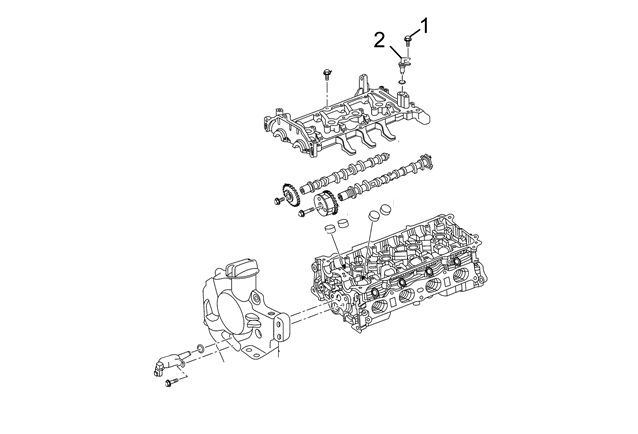

Callout	Component Name
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Camshaft Position Sensor Procedure Disconnect the camshaft position sensor electrical connector. Install NEW O-rings on the camshaft position sensor.

Callout

Component Name

Camshaft Position Sensor Fastener

CAUTION:

Tighten
7 N.m (62 lb in)

Camshaft Position Sensor

Procedure
