Installation Procedure

    NOTE:

    Lubricate the NEW fuel injector O-ring seals with clean engine oil.

  1. Install NEW fuel injector O-ring seals during assembly.
  2. Fuel Injector - Install

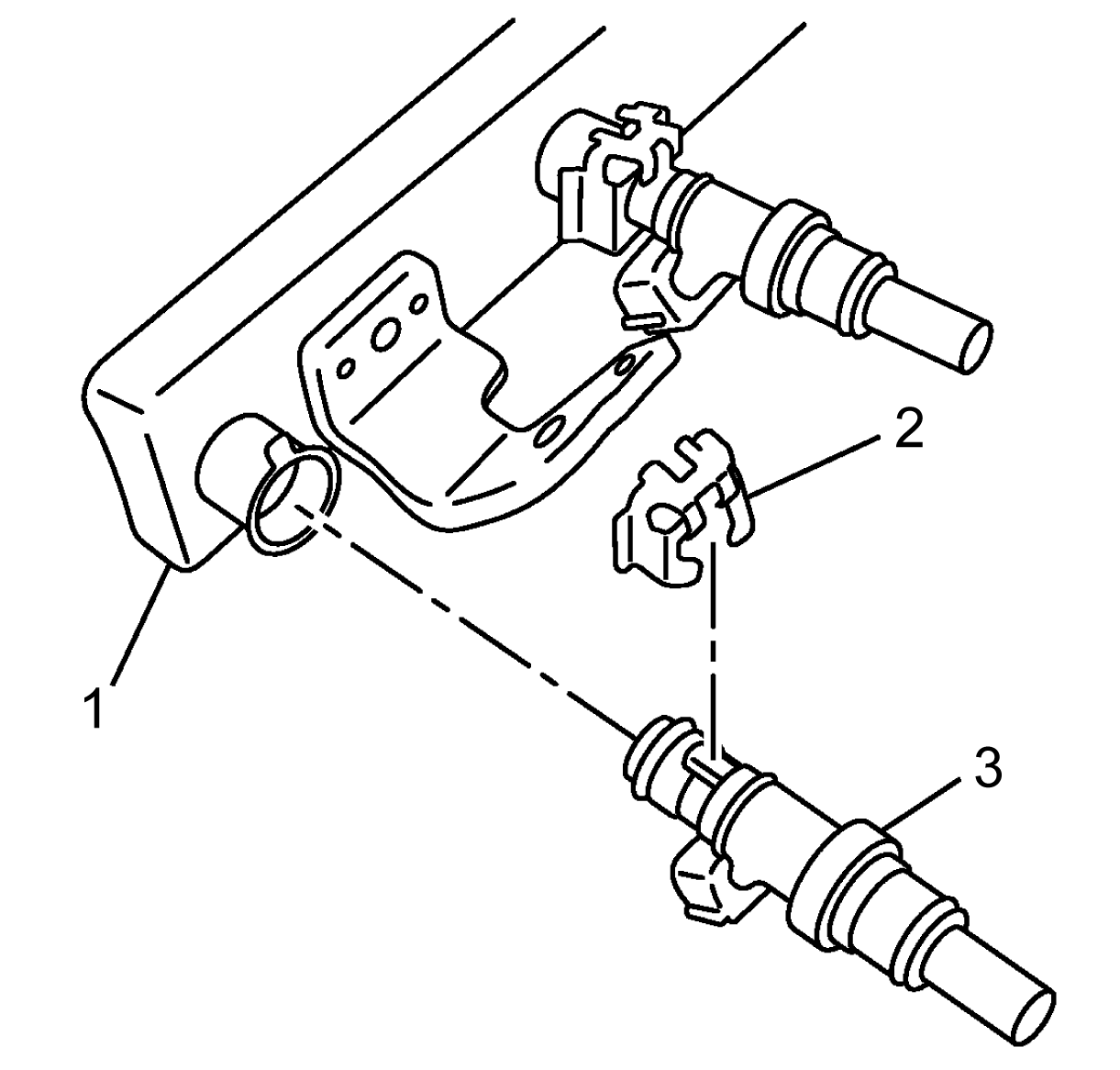

    GM3736197Courtesy of GENERAL MOTORS COMPANY
  3. Fuel Injector Retainer - Install
  4. Fuel Injection Fuel Rail Assembly Replacement  - Install
