Installation Procedure

  1. Position and raise the fuel tank.

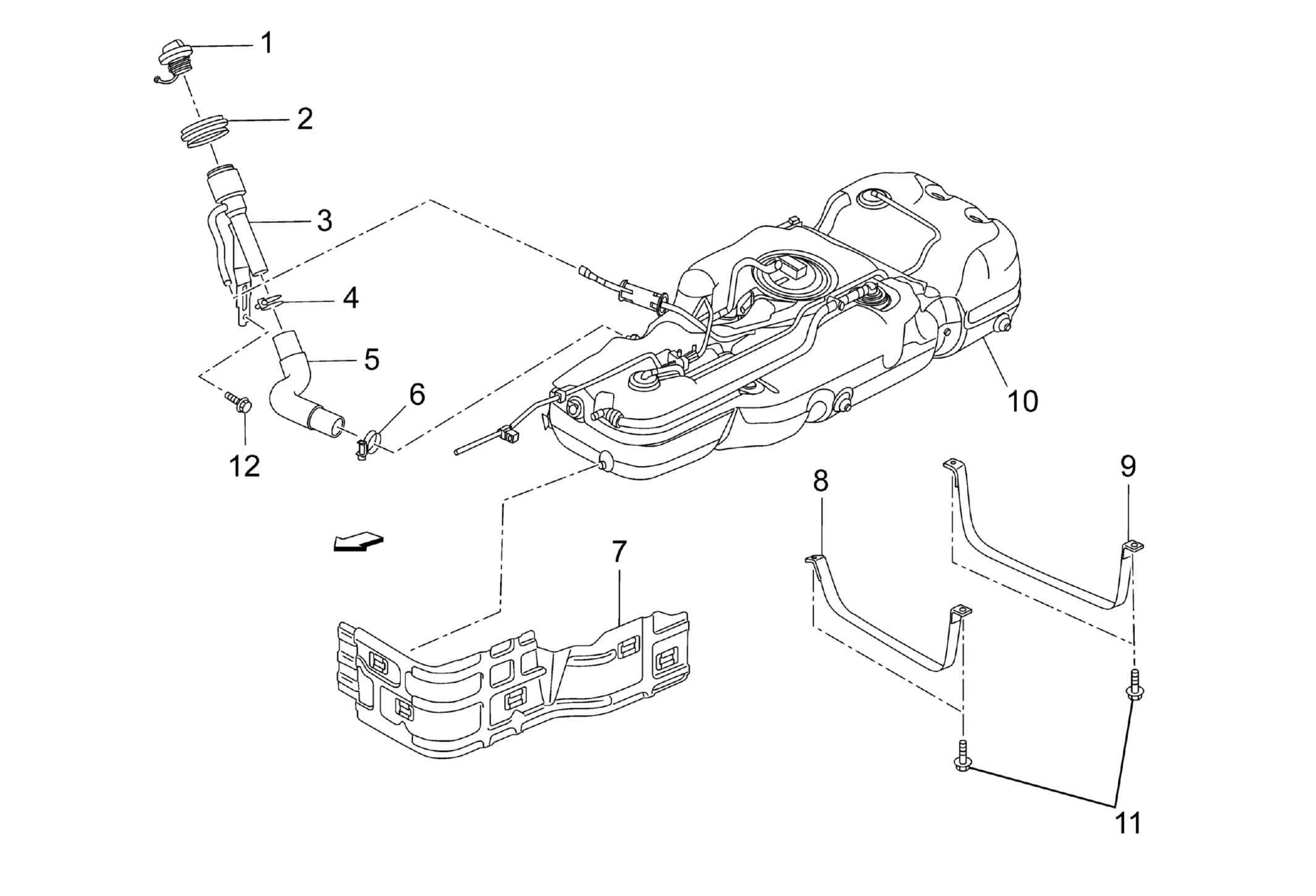

  2. Fuel Tank Strap - Install
    GM3816903Courtesy of GENERAL MOTORS COMPANY
  3. Fuel Tank Strap Fastener - Tighten25 N.m (18 lb ft)

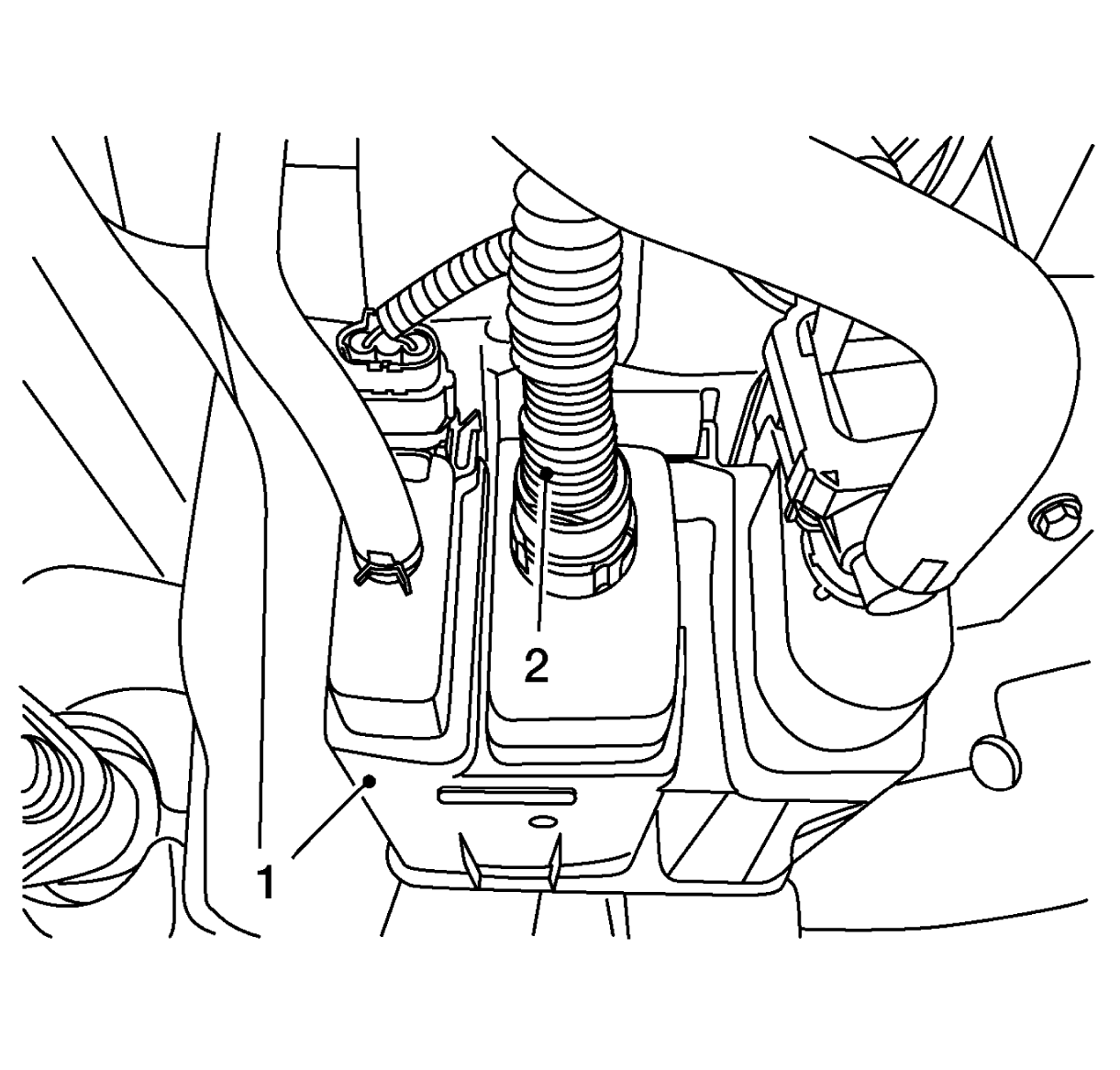

  4. Evaporative Emission Canister Air Inlet Hose - Connect Plastic Collar Quick Connect Fitting Service
    GM3816912Courtesy of GENERAL MOTORS COMPANY

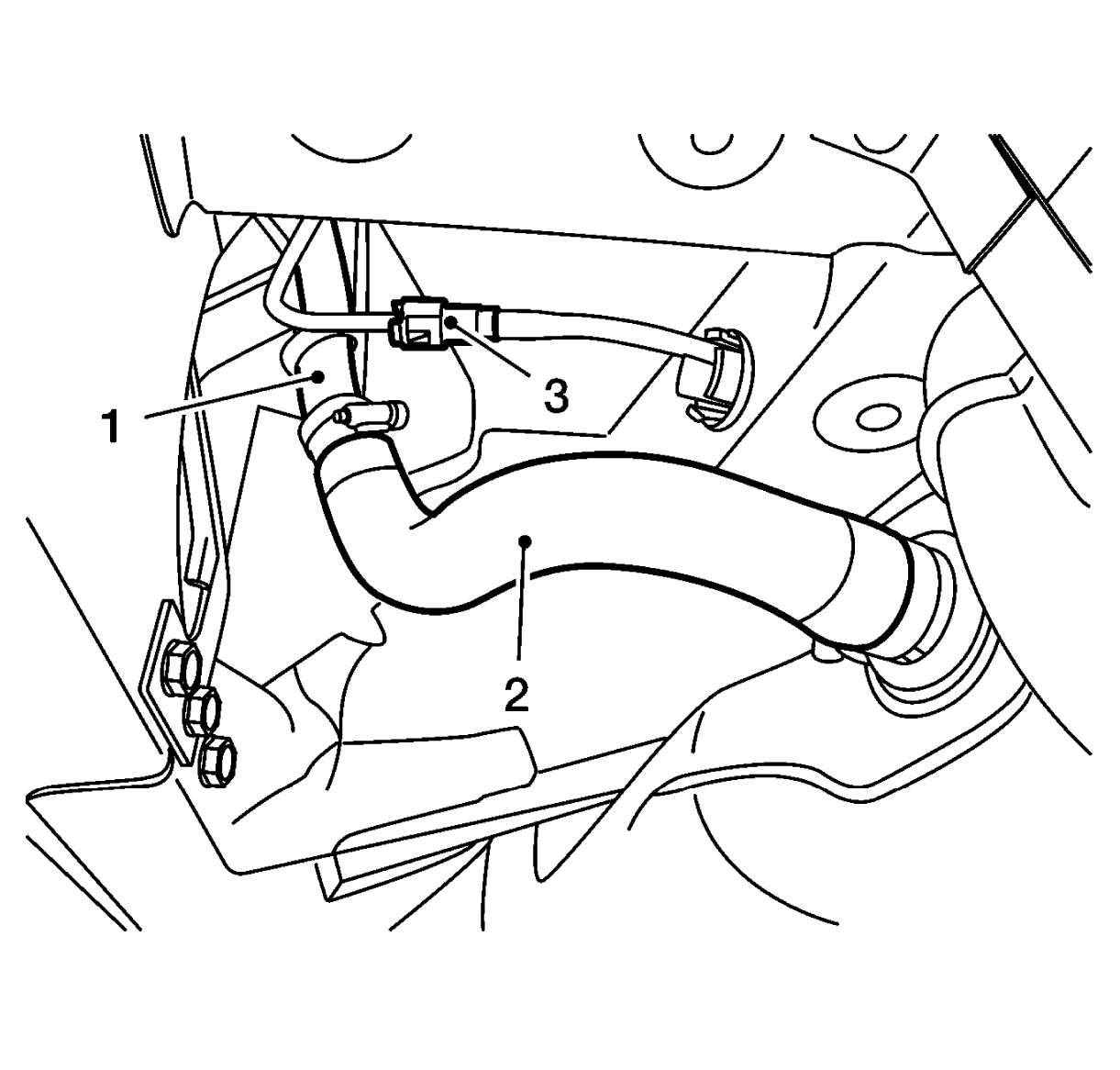

  5. Fuel Tank Filler Vent Pipe - Connect
    GM3816907Courtesy of GENERAL MOTORS COMPANY
  6. Fuel Tank Filler Hose - Connect
  7. Lower the vehicle.
  8. Fuel Pump - Install the following components:
    GM3816770Courtesy of GENERAL MOTORS COMPANY
  9. Install the inspection hole cover.
  10. Reposition the floor trim panel.
  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
