Installation Procedure

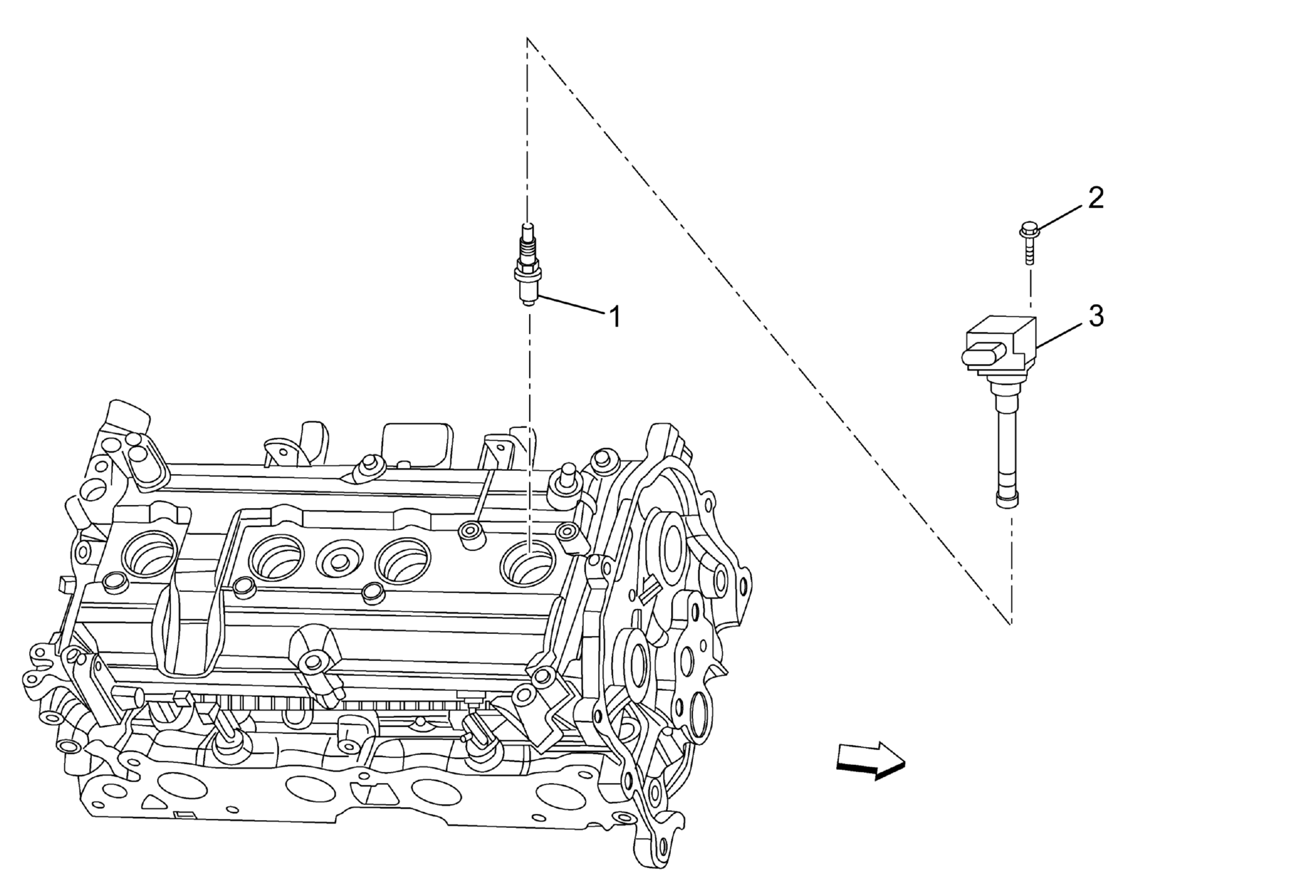

  1. Ignition Coil - Install
    GM3714300Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Ignition Coil Bolt - Tighten7 N.m (62 lb in)
  3. Ignition Coil Electrical Connector - Connect
  4. Intake Manifold Replacement - Install
