Installation Procedure

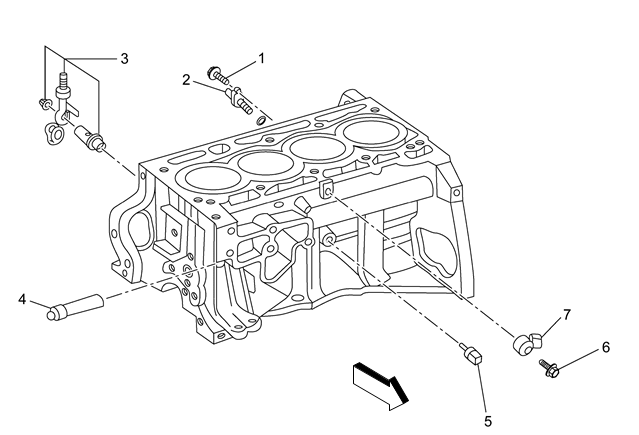

    Fig 1: Engine Oil Pressure Switch Replacement Components With Torque Specifications
    GM3764613Courtesy of GENERAL MOTORS COMPANY
  1. Knock Sensor - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Knock Sensor Fastener - Tighten22 N.m (16 lb ft)
