Installation Procedure

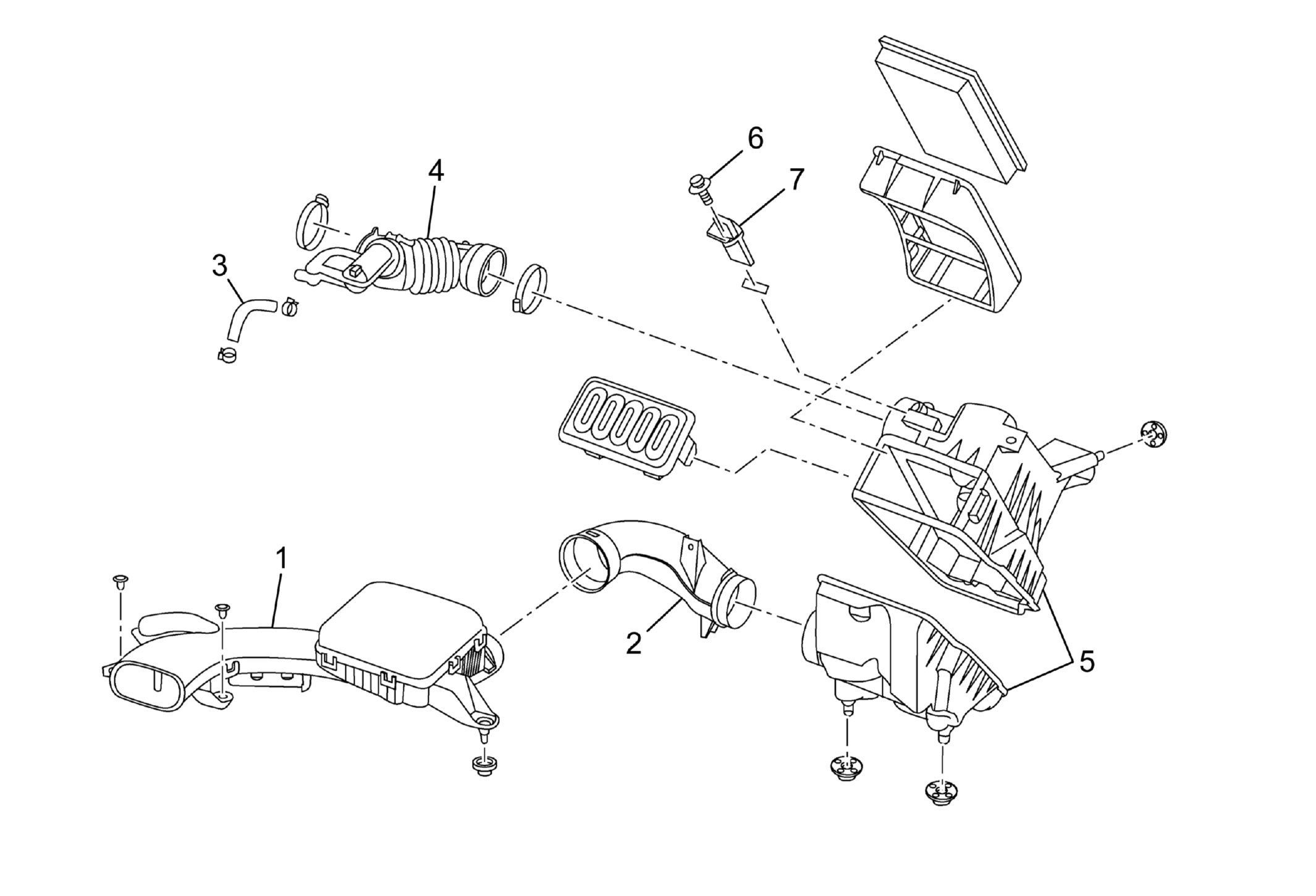

  1. Inspect the mass airflow sensor O-ring (8) and replace the sensor if the O-ring shows signs of wear.
    GM3714320Courtesy of GENERAL MOTORS COMPANY
  2. Mass Airflow Sensor - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Mass Airflow Sensor Bolt - Install 4 N.m (35 lb in)
  4. Electrical Connector - Connect
