Auxiliary Chassis Control Module Replacement - Trailer Brake

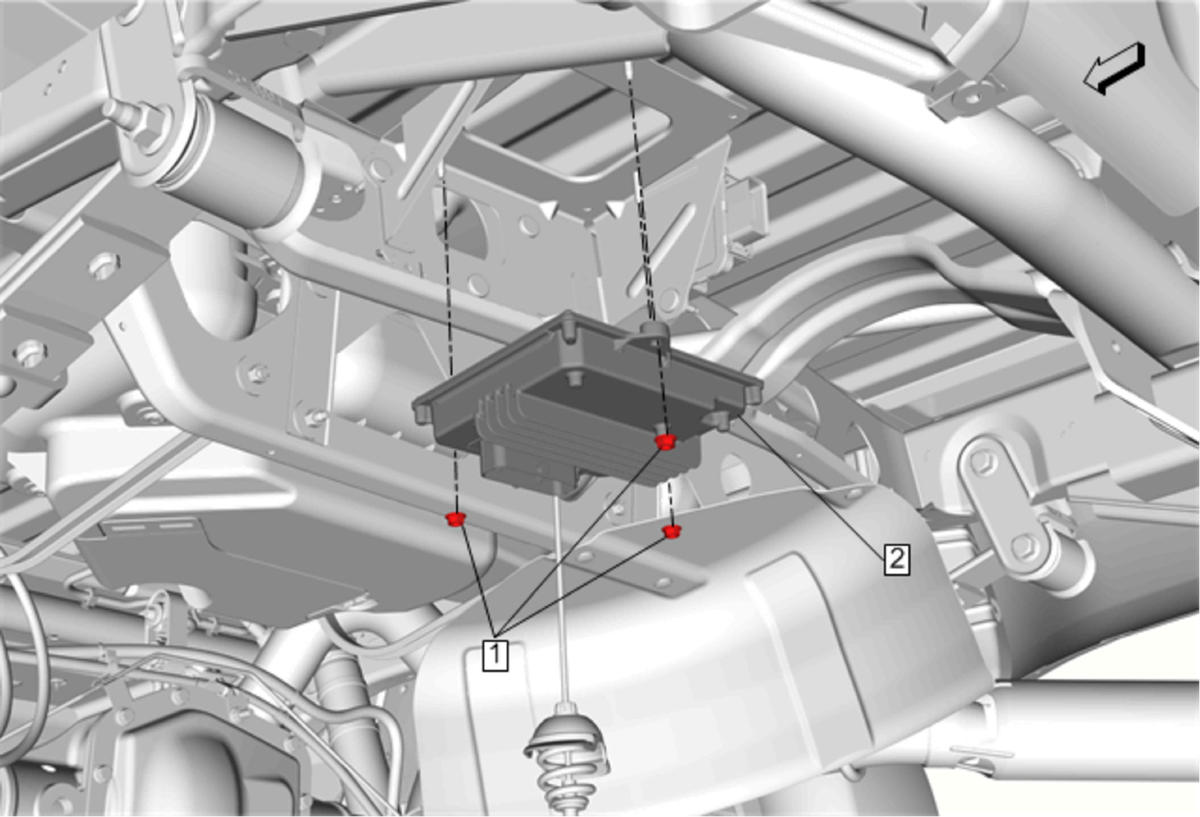

Fig 1: Auxiliary Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Remove the spare tire.
1	Chassis Control Module Fastener (Qty: 3) CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Auxiliary Chassis Control Module- Trailer Brake Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References Lower the vehicle. Lifting and Jacking the Vehicle

Callout

Component Name

Preliminary Procedures

Chassis Control Module Fastener (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Auxiliary Chassis Control Module- Trailer Brake

Procedure
