Vehicle Stability Control System Switch Replacement

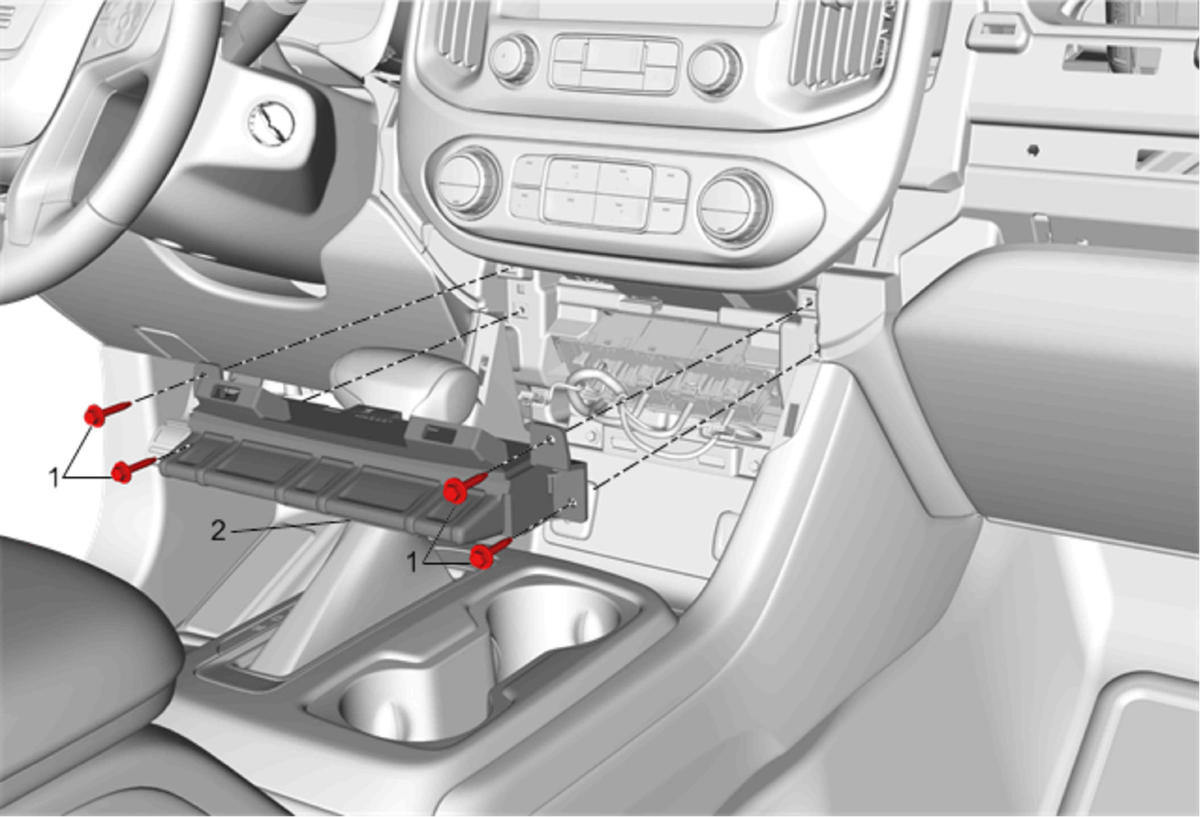

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement . Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1	Vehicle Stability Control System Switch Fastener (Qty 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Vehicle Stability Control System Switch Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .

Vehicle Stability Control System Switch Fastener (Qty 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Vehicle Stability Control System Switch
Procedure
Disconnect the electrical connector.
