Front Seat Belt Guide Adjuster Replacement (Extended Cab)

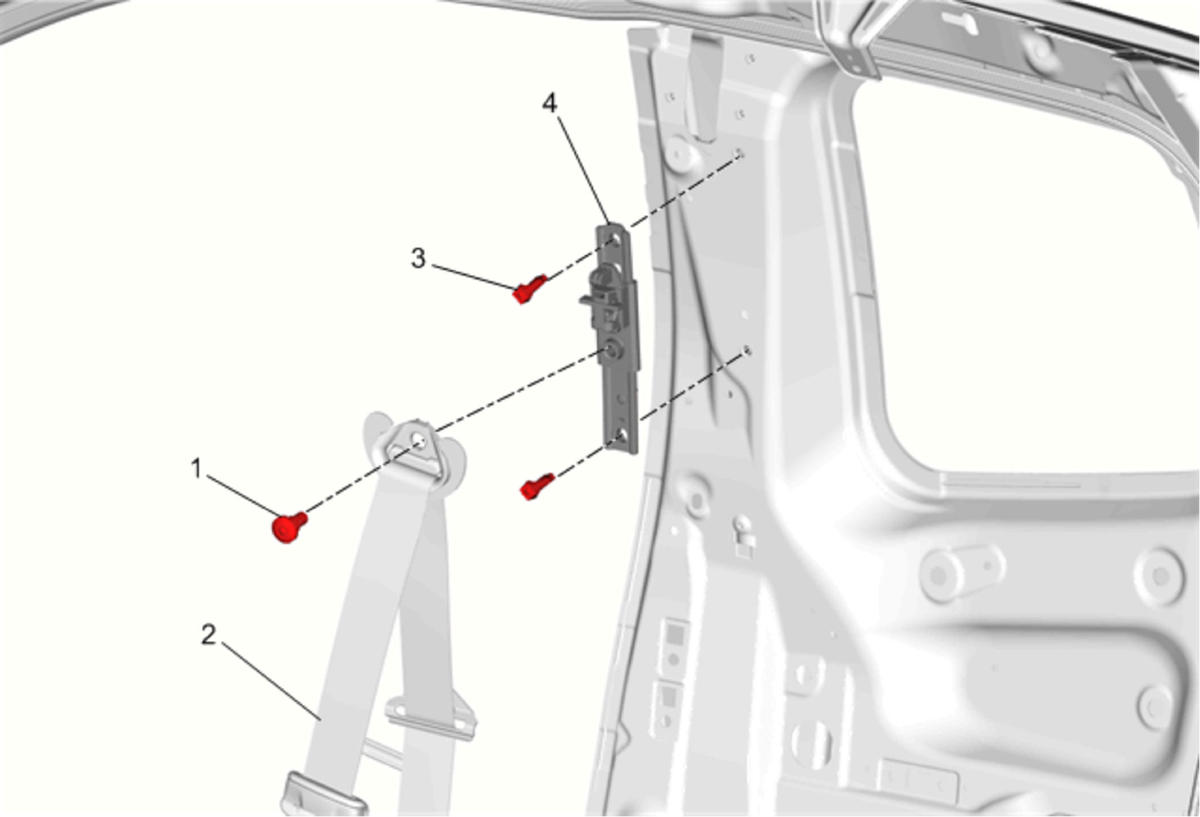

Fig 1: Front Seat Belt Guide Adjuster (Extended Cab)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Side Door Trim Replacement (Extended Cab)
1	Front Seat Belt Retractor Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Front Seat Belt
3	Front Seat Belt Guide Adjuster Bolt (Qty: 2) Tighten  45 N.m (33 lb ft)
4	Front Seat Belt Guide Adjuster
