Removal Procedure

  1. Remove Steering Linkage Outer Tie Rod. Refer to Steering Linkage Outer Tie Rod Replacement (With ZR2)

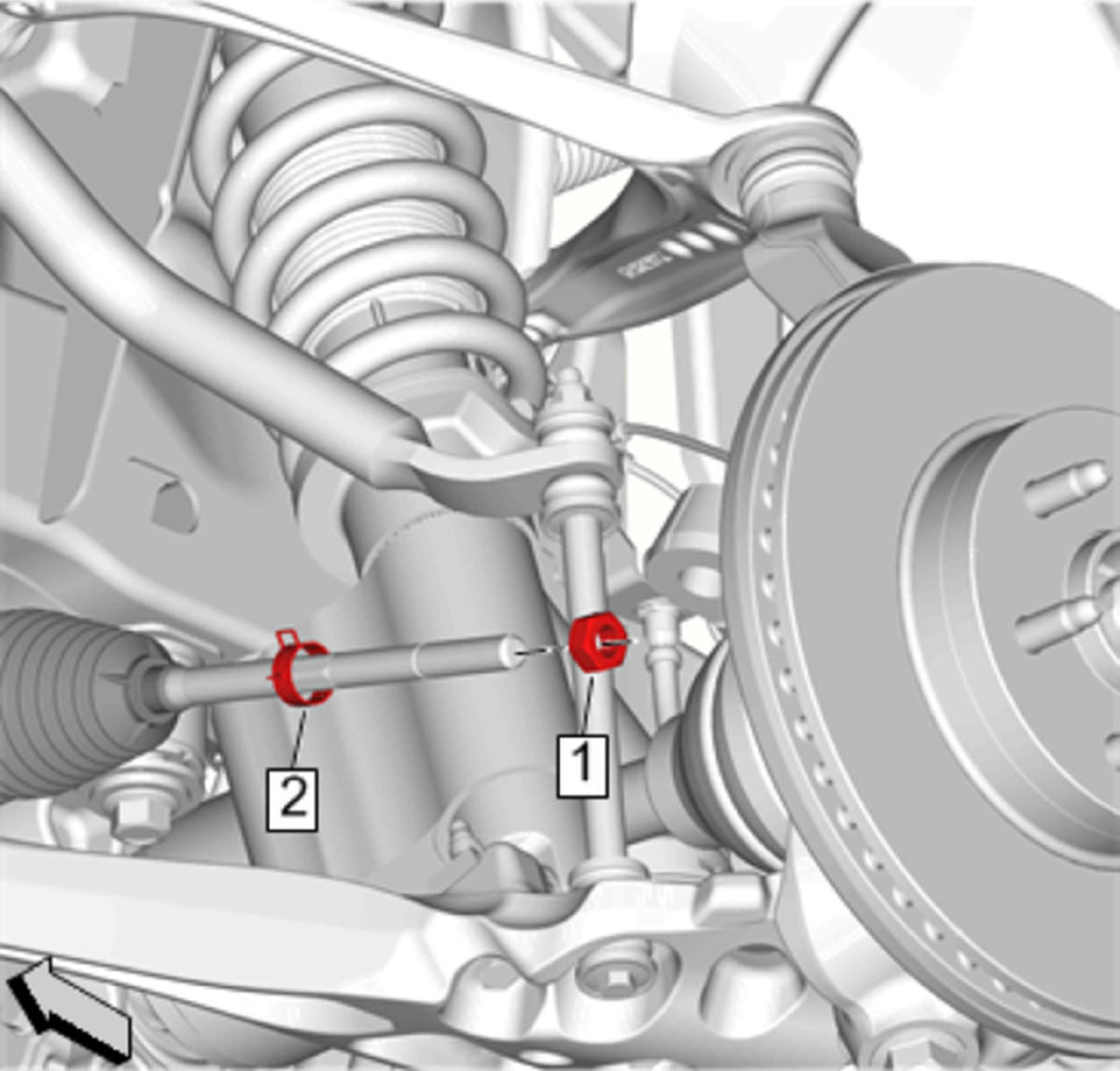

    2. Fig 1: Steering Linkage Inner Tie Rod Nut And Steering Gear Boot Outer Clamp
    GM4569558Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.

  2. Remove Steering Linkage Inner Tie Rod Nut (1)
  3. Remove Steering Gear Boot Outer Clamp (2)

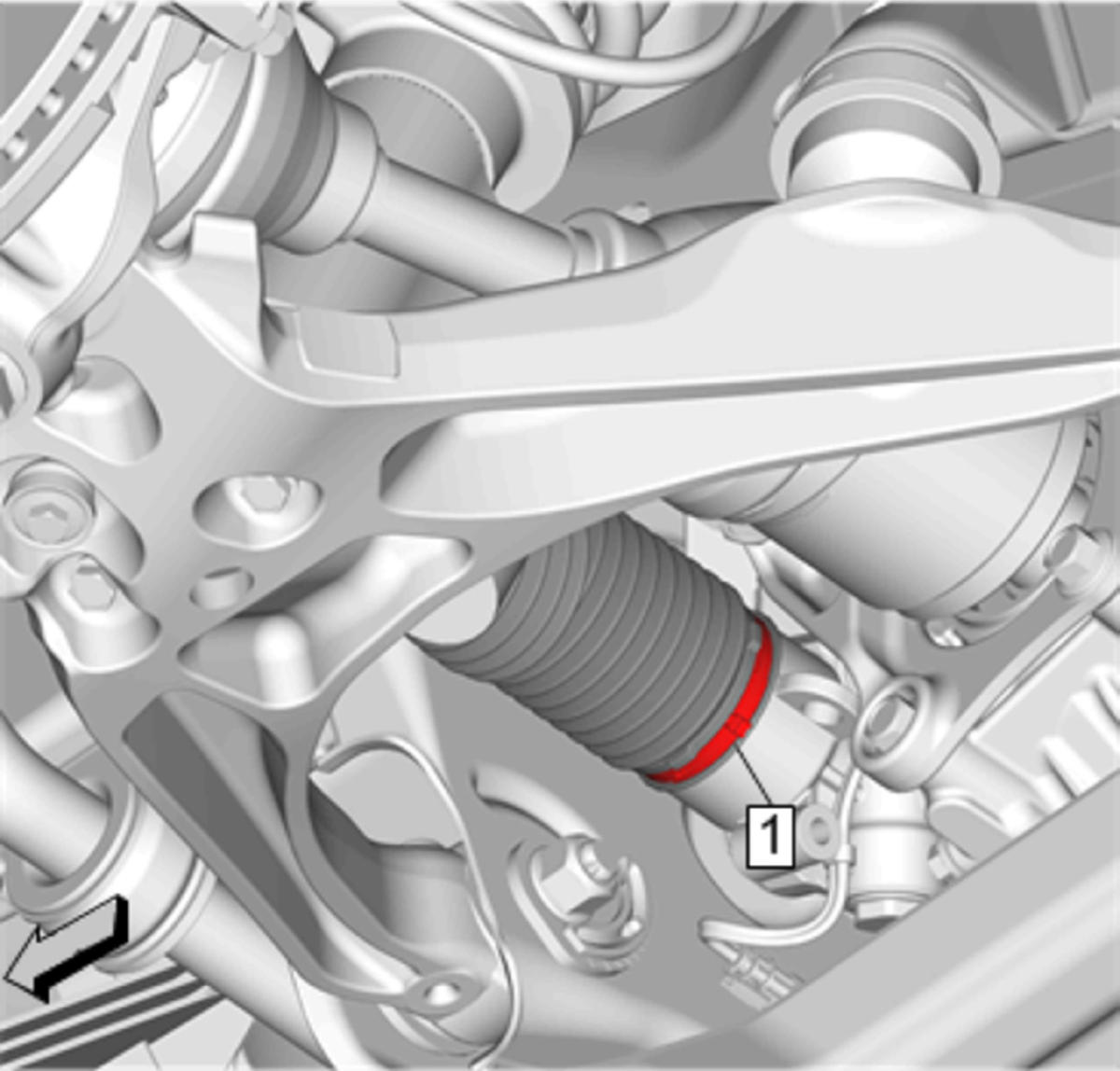

    4. Fig 2: Steering Gear Boot Inner Clamp
    GM4569561Courtesy of GENERAL MOTORS COMPANY
  4. Remove Steering Gear Boot Inner Clamp (1)

    DISCARD the clamp.

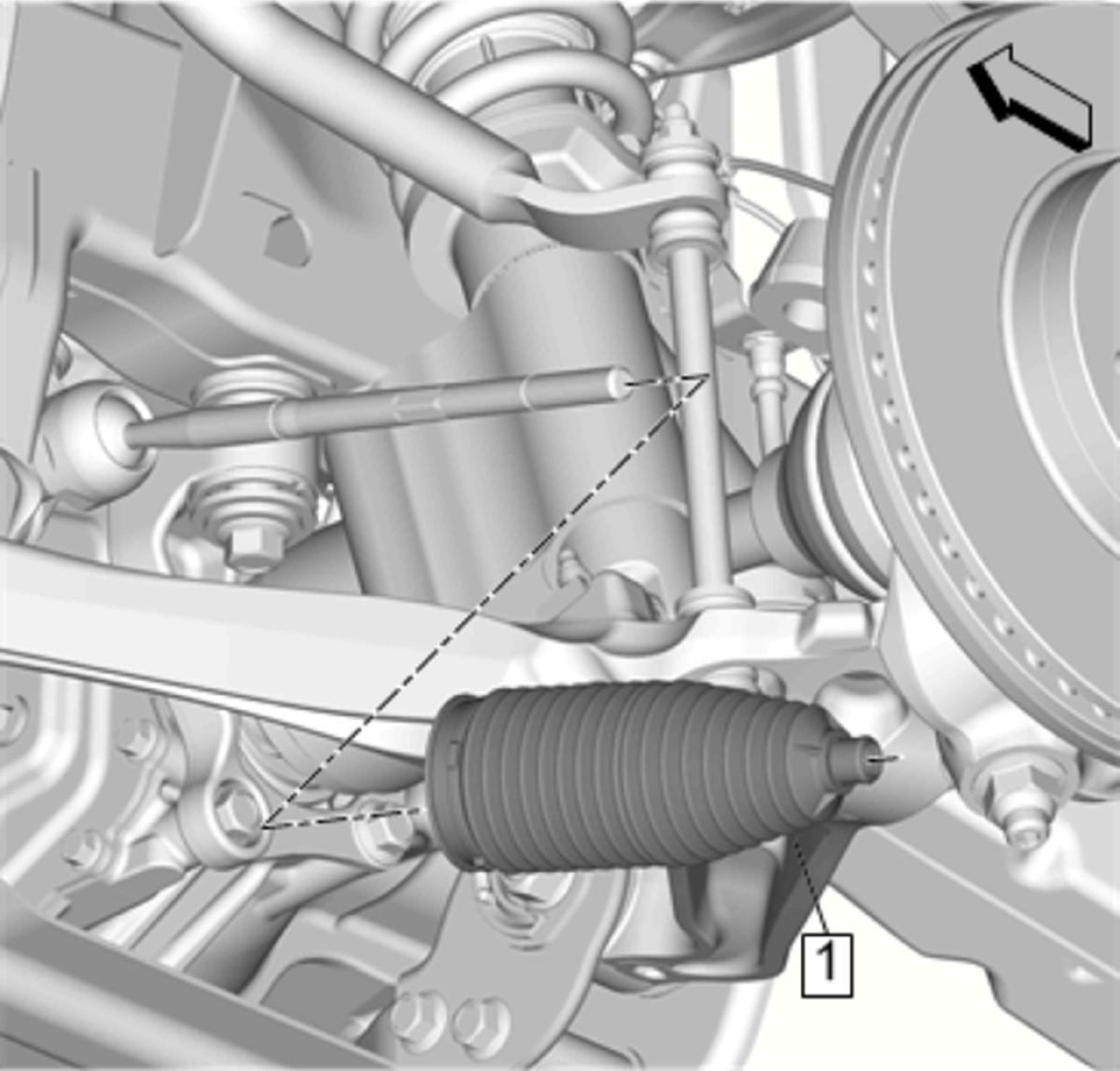

    5. Fig 3: Steering Gear Boot
    GM4569563Courtesy of GENERAL MOTORS COMPANY
  5. Remove the steering gear boot (1) from the steering gear.
