Human Machine Interface Control Module Replacement

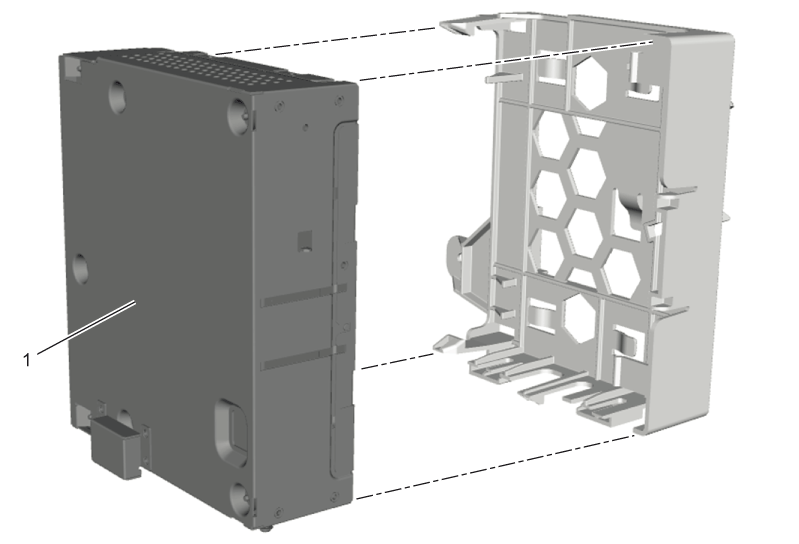

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Human Machine Interface Control Module Bracket. Refer to Human Machine Interface Control Module Bracket Replacement
1	Human Machine Interface Control Module Procedure Unlock the retaining tabs. Transfer components as necessary. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Human Machine Interface Control Module Bracket. Refer to Human Machine Interface Control Module Bracket Replacement

Human Machine Interface Control Module

Procedure
