Keyless Entry Control Module Bracket Replacement (Hatchback)

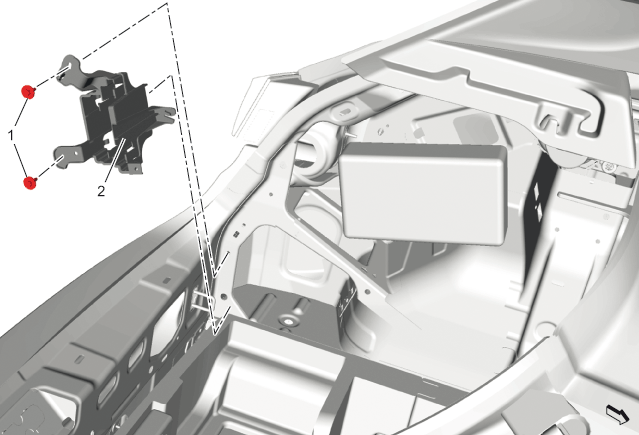

Fig 1: Keyless Entry Control Module Bracket (Hatchback)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Keyless Entry Control Module. Refer to Keyless Entry Control Module Replacement (Hatchback)
1	Keyless Entry Control Module Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  5.5 N.m (49 lb in)
2	Keyless Entry Control Module Bracket
