Keyless Entry Control Module Bracket Replacement (Notchback)

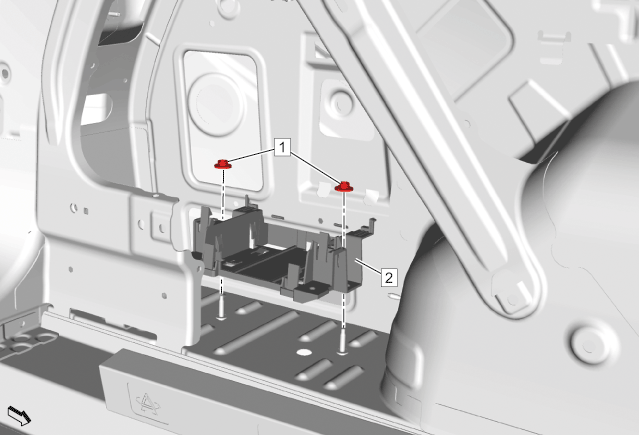

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Keyless Entry Control Module. Refer to Keyless Entry Control Module Replacement (Notchback) |
|
| 1 | Keyless Entry Control Module Bracket Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution Tighten 5.5 N.m (49 lb in) |
| 2 | Keyless Entry Control Module Bracket Procedure Install Keyless Entry Control Module. Refer to Keyless Entry Control Module Replacement (Notchback) |
