Keyless Entry Control Module Replacement (Hatchback)

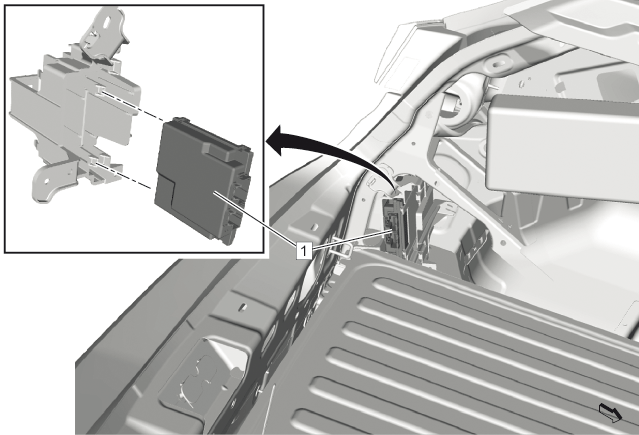

Fig 1: Keyless Entry Control Module (Hatchback)
GM4211371Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Rear Compartment Side Trim - Left Side. Refer to Rear Compartment Side Trim Replacement - Left Side (Hatchback)
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Perform the scan tool learn/reset function: Control Module References
