Keyless Entry Control Module Replacement (Notchback)

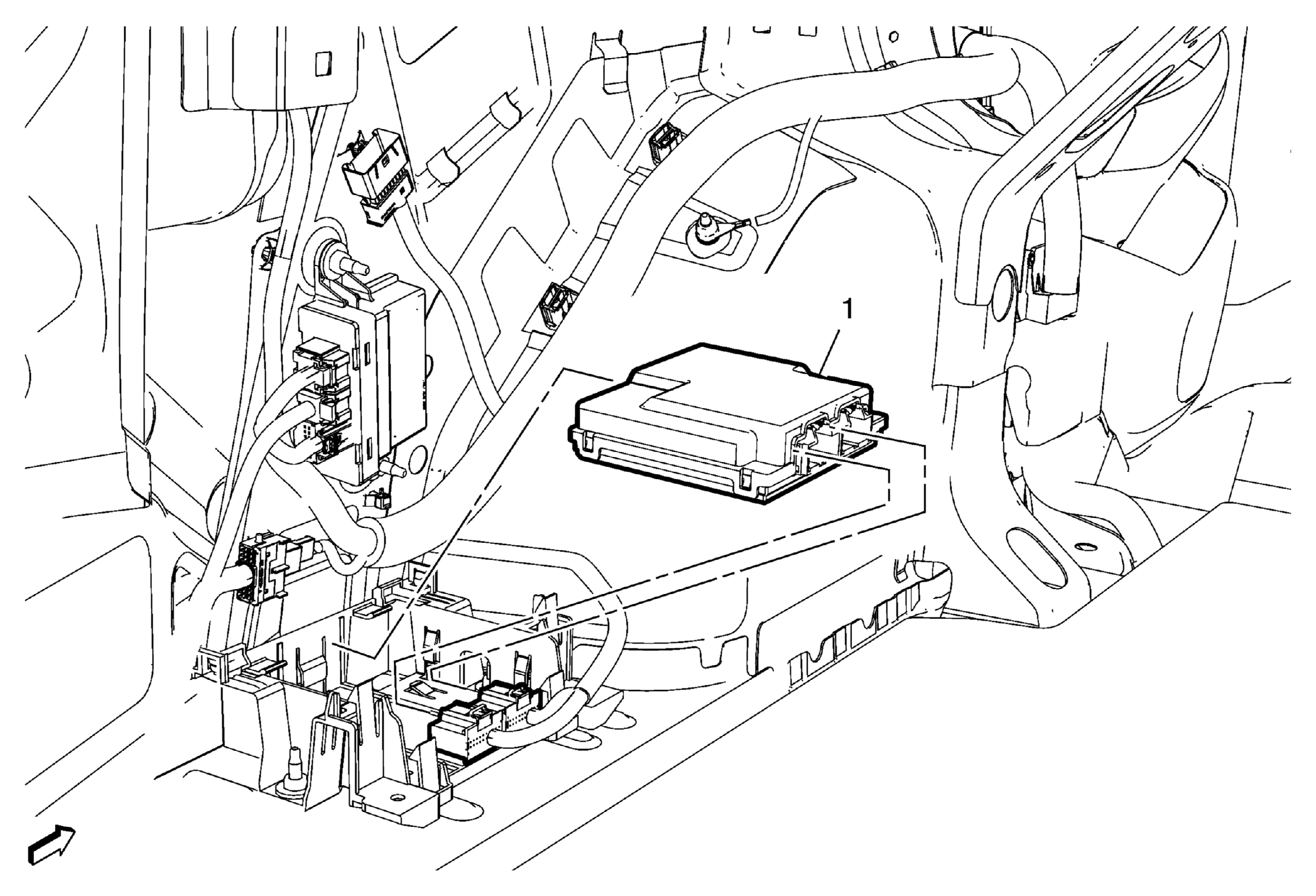

Fig 1: Keyless Entry Control Module (Notchback)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Side Trim - Left Side. Refer to Rear Compartment Side Trim Replacement - Left Side (Notchback)
1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Rear Compartment Side Trim - Left Side. Refer to Rear Compartment Side Trim Replacement - Left Side (Notchback)

Keyless Entry Control Module

Procedure
