Theft Deterrent Module Replacement (Ignition Lock)

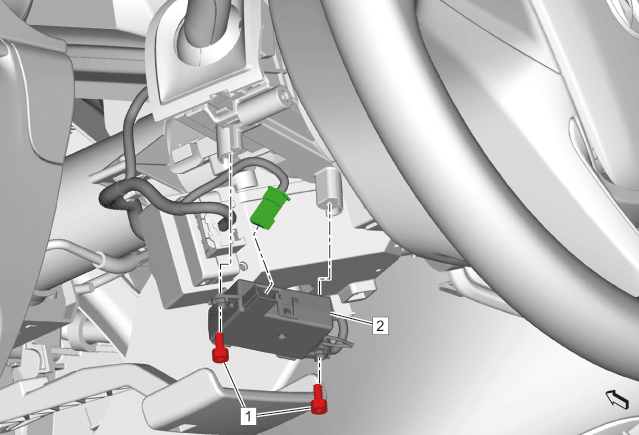

Fig 1: Theft Deterrent Module (Ignition Lock)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection Remove Steering Column Lower Trim Cover. Refer to Steering Column Lower Trim Cover Replacement
1	Theft Deterrent Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 1.5 N.m (13.3 lb in)
2	Theft Deterrent Module Procedure When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References

Callout

Component Name

Preliminary Procedures

Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
Remove Steering Column Lower Trim Cover. Refer to Steering Column Lower Trim Cover Replacement

Theft Deterrent Module Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution

Tighten
1.5 N.m (13.3 lb in)

Theft Deterrent Module
Procedure
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References
