Installation Procedure

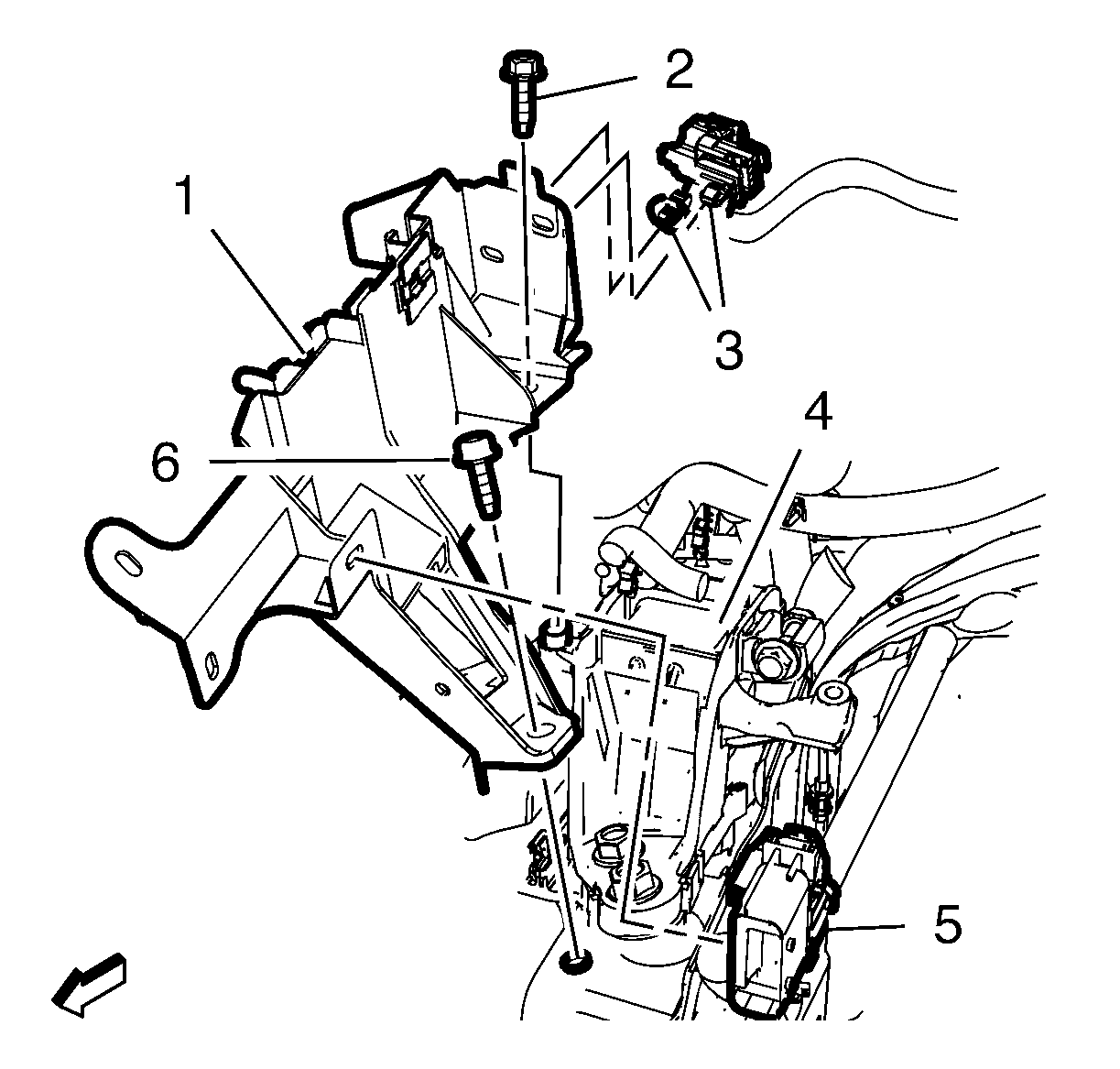

    Fig 1: Transmission Mount, Body Wiring Harness Connector, Engine Control Module And Electronic Brake Control Module Bracket Bolts
    GM3680284Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine control module and electronic brake control module bracket (1) to the transmission mount (4).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 engine control module and electronic brake control module bracket bolts (2, 6) and tighten to 12 N.m (106 lb in).
  3. Clip in the body wiring harness connector (5).
  4. Install Body Wiring Harness (3)
    5. Fig 2: Engine Wiring Harness And Electronic Brake Control Module Bracket
    GM3707209Courtesy of GENERAL MOTORS COMPANY
  6. Clip in the engine wiring harness (1) to the engine control module and electronic brake control module bracket (3).
  7. Clip in battery positive and negative cable (3) from the engine control module and electronic brake control module bracket (1).

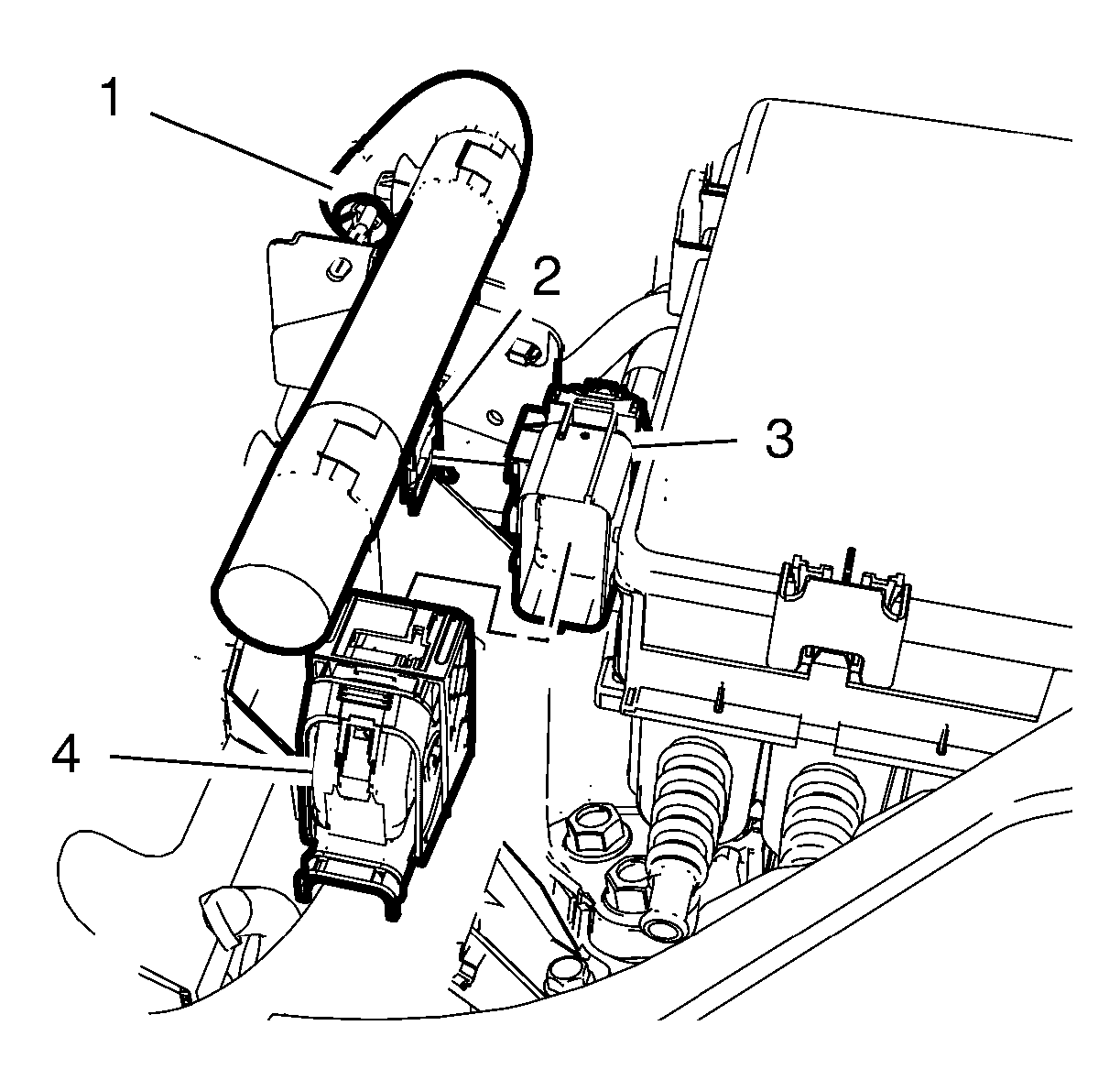

    8. Fig 3: Body Wiring Harness Connector And Electronic Brake Control Module Bracket
    GM3680283Courtesy of GENERAL MOTORS COMPANY
  8. Install Engine Wiring Harness (1)
  9. Connect the engine wiring harness connector (4) to the body wiring harness connector (3).
  10. Clip in the body wiring harness connector (3) to the engine control module and electronic brake control module bracket (2)
  11. Install Engine Control Module Bracket Replacement
