Engine Coolant Temperature Sensor Replacement - Radiator Side

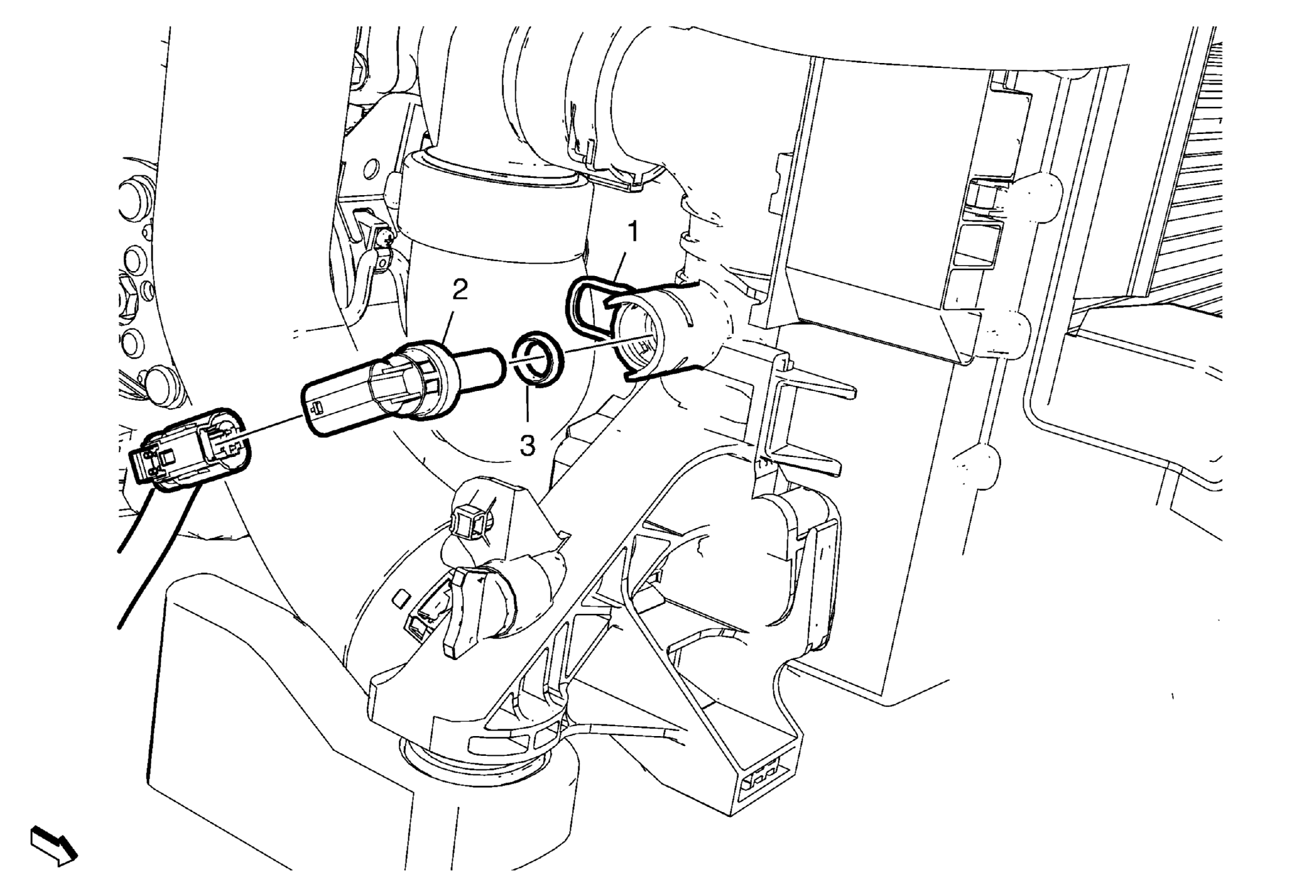

Fig 1: Engine Coolant Temperature Sensor - Radiator Side
GM3680287Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Cooling System Draining and Filling
1 Retaining Clamp
2 Engine Coolant Temperature Sensor
Procedure
Disconnect the electrical connector.
3 Engine Coolant Temperature Sensor Seal
