Installation Procedure

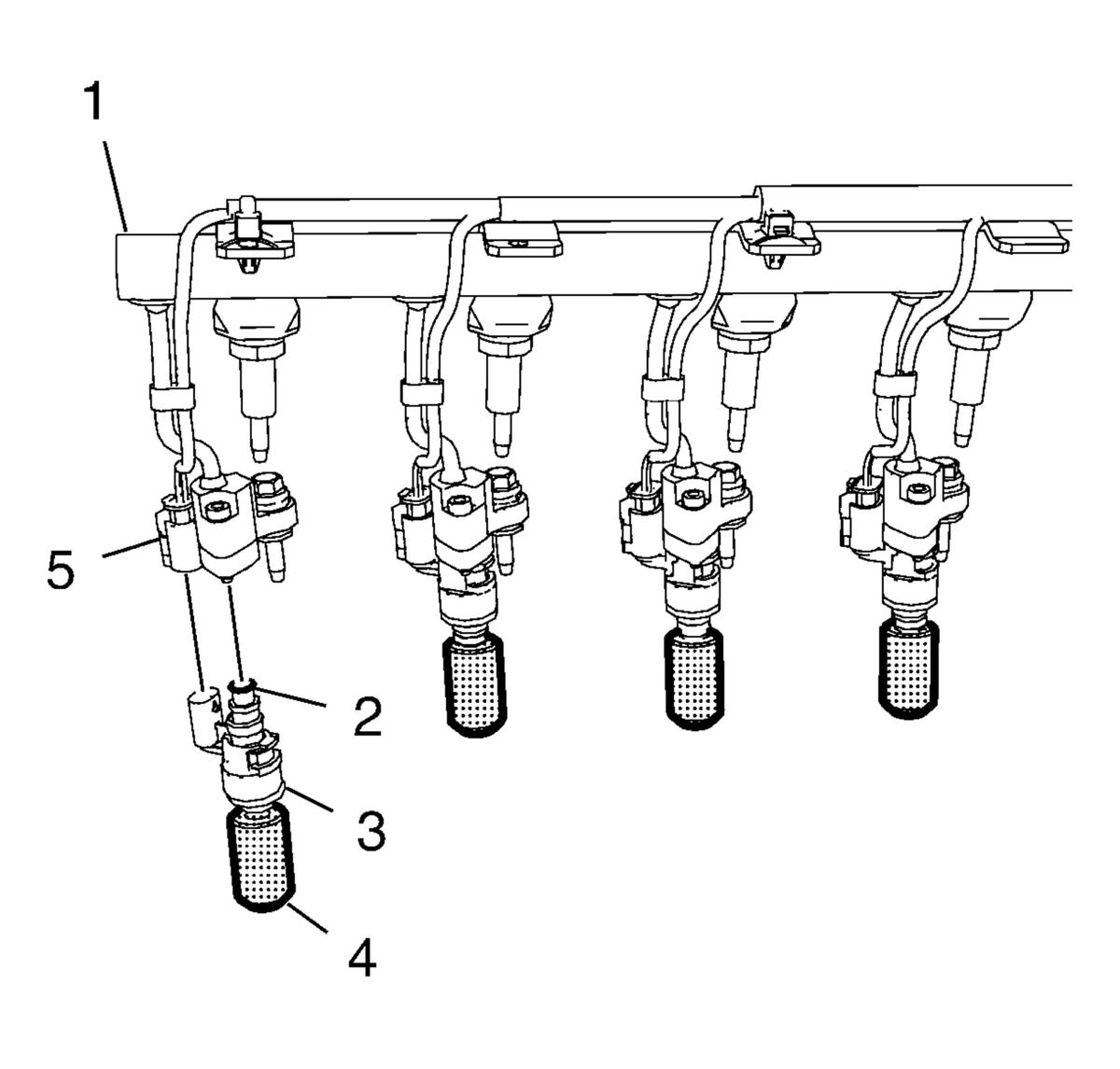

- Install the EN-51146-2-5 calibrations tools (4) to the fuel injectors (3).
- Coat the fuel injector seal (2) with a bit engine oil.
- Install Fuel Injector (2)@Fuel Injection Fuel Rail(1)
- Apply thread lock agent to 8 NEW fuel injector bolts. Refer to Adhesives, Fluids, Lubricants, and Sealers .
- Install 8 NEW fuel injector bolts to the fuel injectors (3) and tighten to 5 N.m (44 lb in).
- Connect the 4 fuel injector electrical connectors (5).
- Install Fuel Injection Fuel Rail Assembly Removal and Installation
NOTE:
The EN-51146-2-5 calibrations tools must be installed to the other injectors, also.
CAUTION:
Refer to Fastener Caution .
