Installation Procedure

    Fig 1: Suitable Jack, Fuel Tank Straps And Bolts
    GM4091478Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A second technician is required.

  1. Install the fuel tank (1) to the jack (3).
  2. Position and raise the fuel tank (1).
  3. Install Fuel Tank Strap(2)
    4. CAUTION:

    Fastener Caution

  4. Install Fuel Tank Strap Bolt (4) and tighten 22 N.m (16 lb ft)
  5. Lower and remove the hydraulic jack.(3)
    6. Fig 2: Electrical Connector
    GM4091465Courtesy of GENERAL MOTORS COMPANY
  6. Connect the electrical connector.(1)

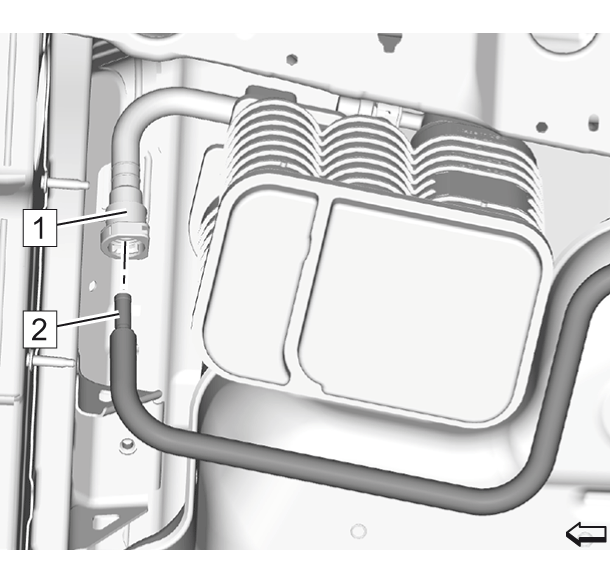

    7. Fig 3: Evaporative Emission Canister And Filter Pipe
    GM4553983Courtesy of GENERAL MOTORS COMPANY
  7. Reposition Evaporative Emission Canister Filter Pipe (2)
  8. Connect Evaporative Emission Canister Filter Pipe (2) @Evaporative Emission Canister (1) Plastic Collar Quick Connect Fitting Service

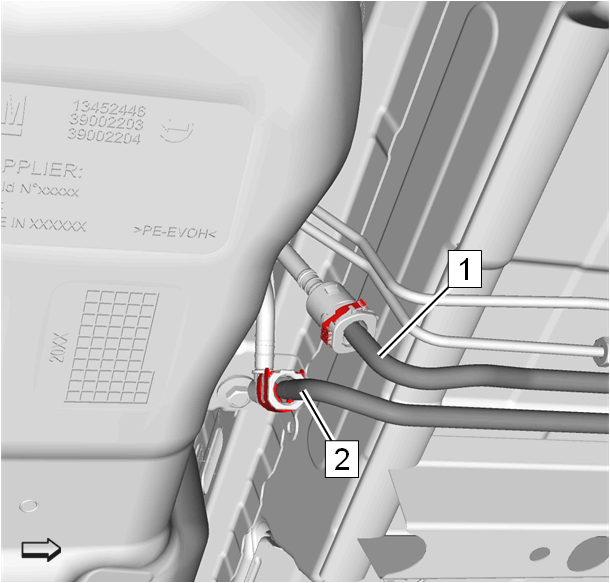

    9. Fig 4: Fuel Feed Pipe And Evaporative Emission Canister Front Pipe
    GM4674062Courtesy of GENERAL MOTORS COMPANY
  9. Close all connections with EN-6015  plugs.
  10. Connect the evaporative emission canister front pipe (1). Plastic Collar Quick Connect Fitting Service
  11. Connect Fuel Feed Pipe - Underbody (1) Plastic Collar Quick Connect Fitting Service .
    12. Fig 5: Fuel Tank Filler Hose Clamp
    GM4091462Courtesy of GENERAL MOTORS COMPANY
  12. Remove the EN-6015  plugs from all connections.
  13. Fuel Tank Vent Pipe (1) - Plastic Collar Quick Connect Fitting Service .
  14. Install Fuel Tank Filler Hose (2)
  15. Clamp (3) - Tighten 2.5 N.m (22 lb in)
    16. Fig 6: Parking Brake Cable Nuts, Retainers And Bracket
    GM4091470Courtesy of GENERAL MOTORS COMPANY
  16. Position both parking brake cables.
  17. Install Parking Brake Cable (2) @Parking Brake Cable Bracket (1)
  18. Install Parking Brake Cable (2) @Retainer (4)
  19. Install Parking Brake Cable Nut (3) and tighten 9 N.m (80 lb in)

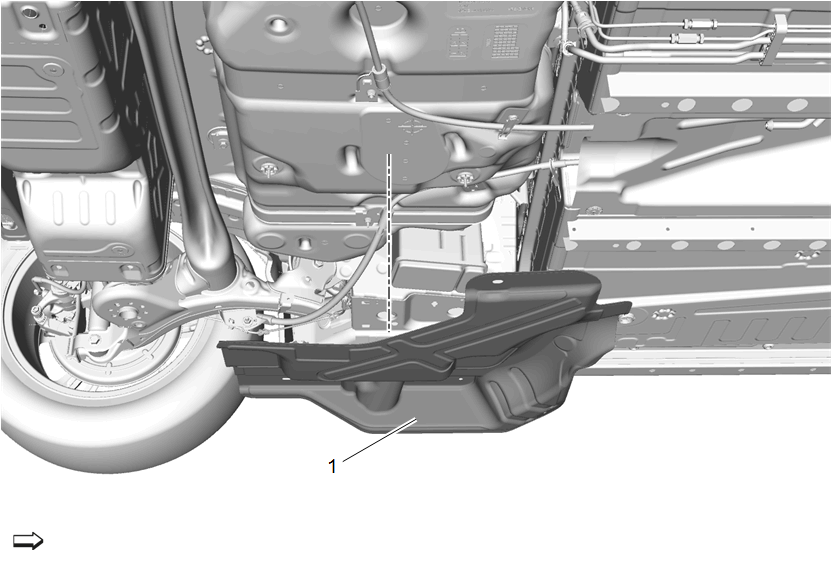

    20. Fig 7: Fuel Tank Heat Shield
    GM4674065Courtesy of GENERAL MOTORS COMPANY
  20. Install Fuel Tank Heat Shield (1) Fuel Tank Heat Shield Replacement (1.4L LE2, and 1.6L Diesel LH7 - Notchback)

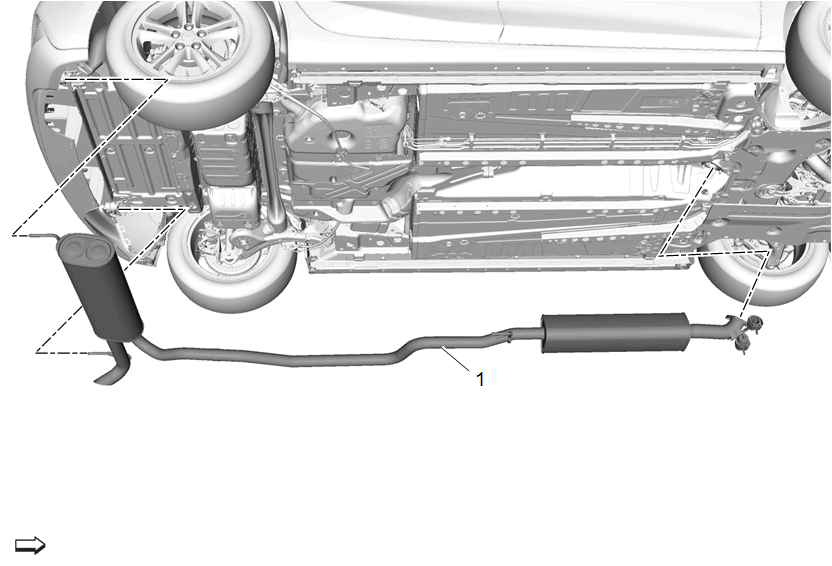

    21. Fig 8: Exhaust System
    GM4674059Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not cut the exhaust system.

  21. Install Exhaust System (1) Exhaust System Replacement (Notchback)Exhaust System Replacement (Hatchback)
  22. Lower the vehicle.
  23. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
