Installation Procedure

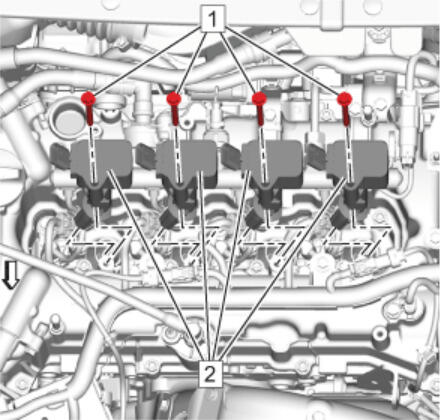

    Fig 1: Ignition Coils And Bolts
    GM3686889Courtesy of GENERAL MOTORS COMPANY
  1. Install Ignition Coil (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Ignition Coil Fastener (1) and tighten 10 N.m (89 lb in)

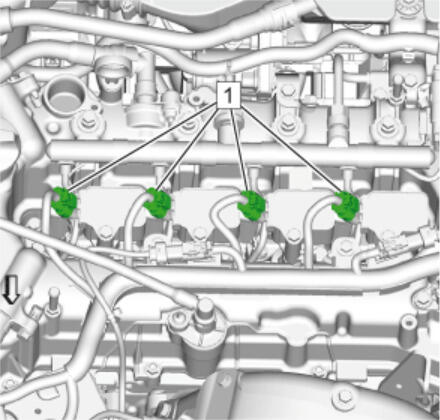

    3. Fig 2: Ignition Coil Electrical Connectors
    GM3686311Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The ignition coil wiring harness cylinder 1 and 3 are marked white.

  3. Connect Ignition Coil Electrical Connector (1)
  4. Install Engine Sight Shield Replacement
