Serial Data Gateway Bracket Replacement

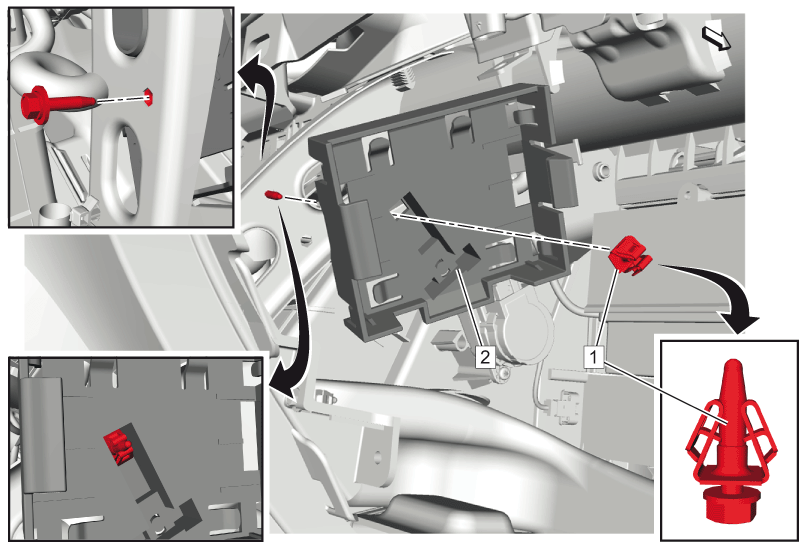

Fig 1: Serial Data Gateway Bracket
GM4538039Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Serial Data Gateway Module. Refer to Serial Data Gateway Module Replacement
1 Serial Data Gateway Module Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Serial Data Gateway Module Bracket
