Powertrain Expansion Bus (LE2/LEX)

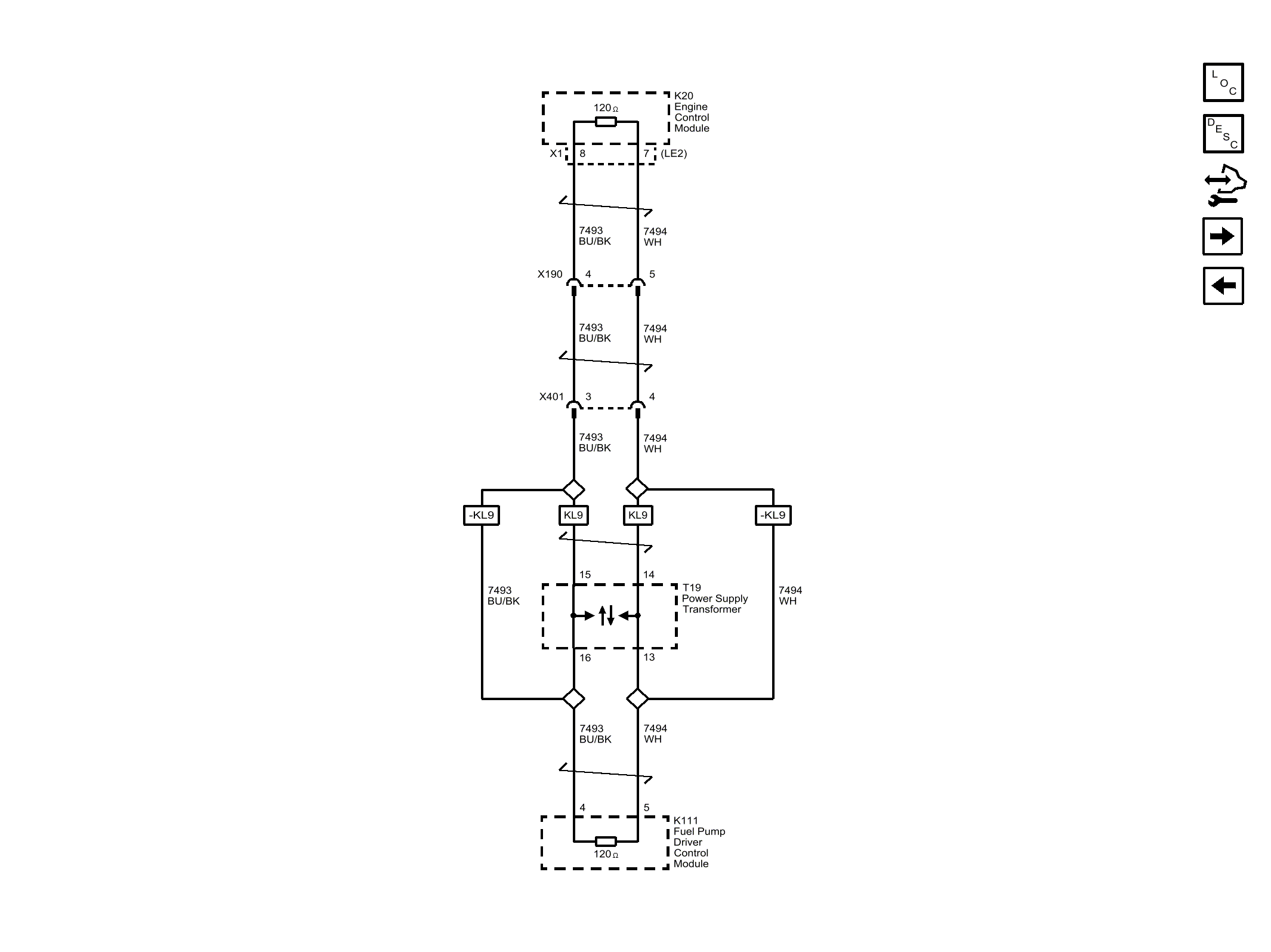

Fig 1: Powertrain Expansion Bus (LE2/LEX)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
