Theft Deterrent Module Replacement (Front Floor Console)

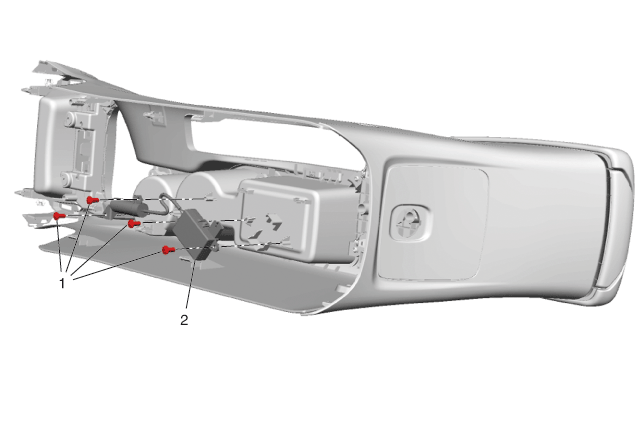

Fig 1: Theft Deterrent Module (Front Floor Console)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console. Refer to Front Floor Console Replacement (Base)Front Floor Console Replacement (Up Level)
1	Theft Deterrent Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (8.9 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. After repairs, refer to Control Module References for programming and set up information.

Callout

Component Name

Theft Deterrent Module Fastener (Qty: 4)

CAUTION:

Tighten
1 N.m (8.9 lb in)

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
After repairs, refer to Control Module References for programming and set up information.
