Side Object Sensing Alert Module Replacement

Preliminary Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
2. Only remove the rear wheelhouse liner fasteners that attach the liner to the rear fascia. Refer to Rear Wheelhouse Liner Replacement

Procedure

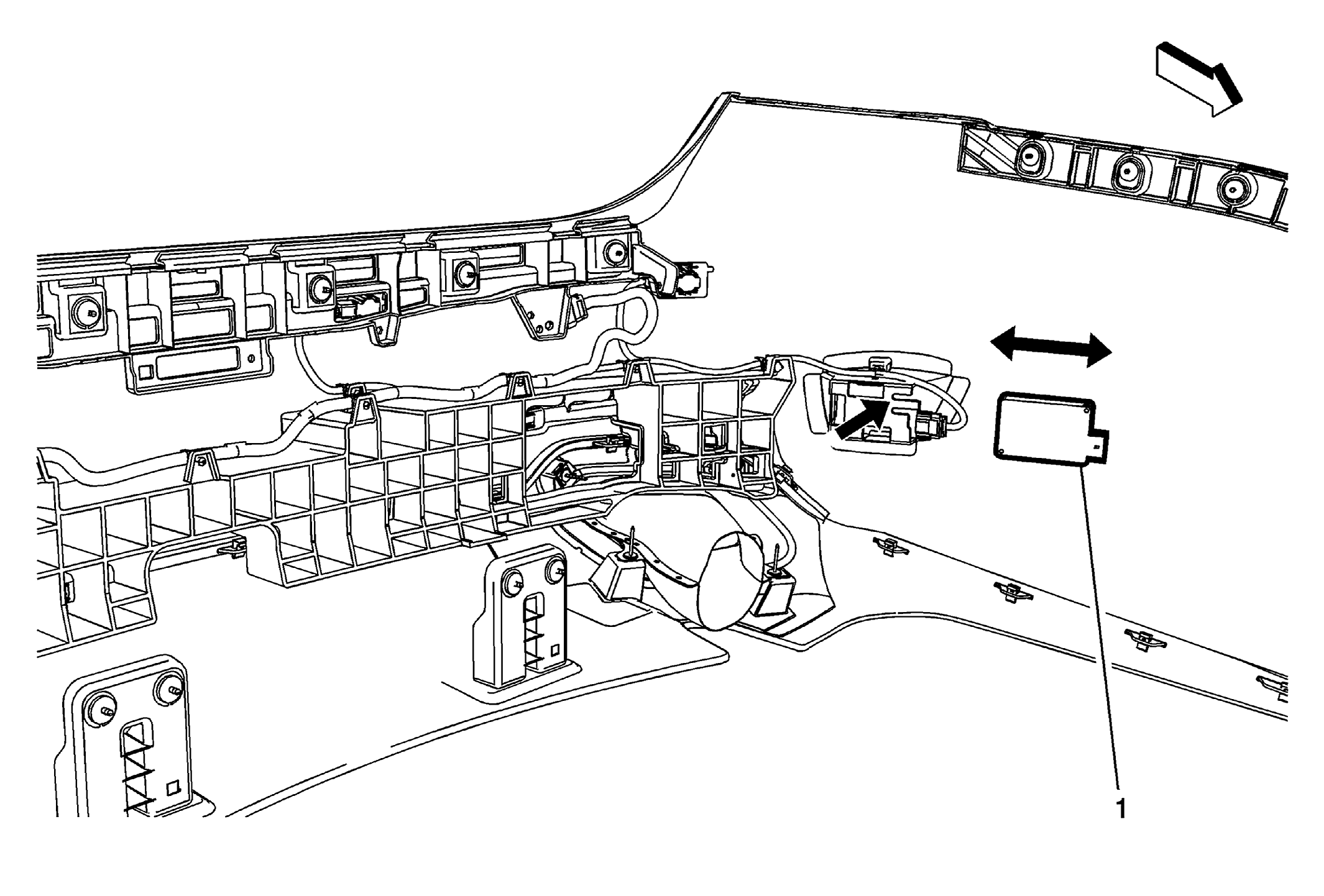

1. Disconnect the electrical connector.
2. Depress the retainer tab (arrow) and slide the module out of the retaining bracket.
3. For programming and set up, refer to Side Object Sensor Module Programming and Setup
