Outside Rearview Mirror Folding Control Module Replacement

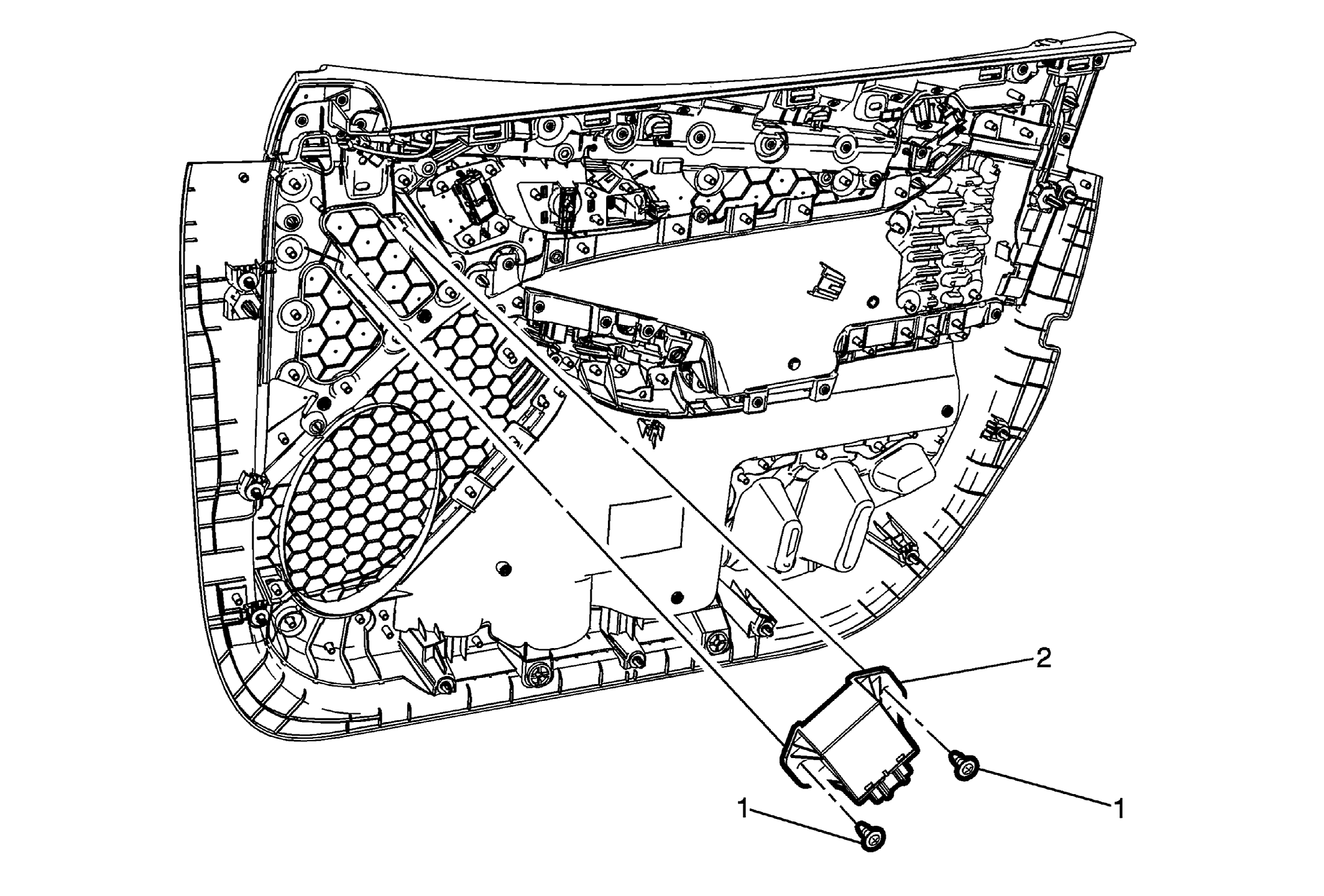

Fig 1: Outside Rearview Mirror Folding Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement . Unhook and reposition the front side door trim panel insulator.
1	Outside Rearview Mirror Folding Control Module Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Outside Rearview Mirror Folding Control Module Procedure Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
Unhook and reposition the front side door trim panel insulator.

Outside Rearview Mirror Folding Control Module Fasteners (Qty: 2)

CAUTION:

Tighten
1 N.m (9 lb in)

Outside Rearview Mirror Folding Control Module
Procedure
Disconnect electrical connector.
