Parking Assist Control Module Replacement

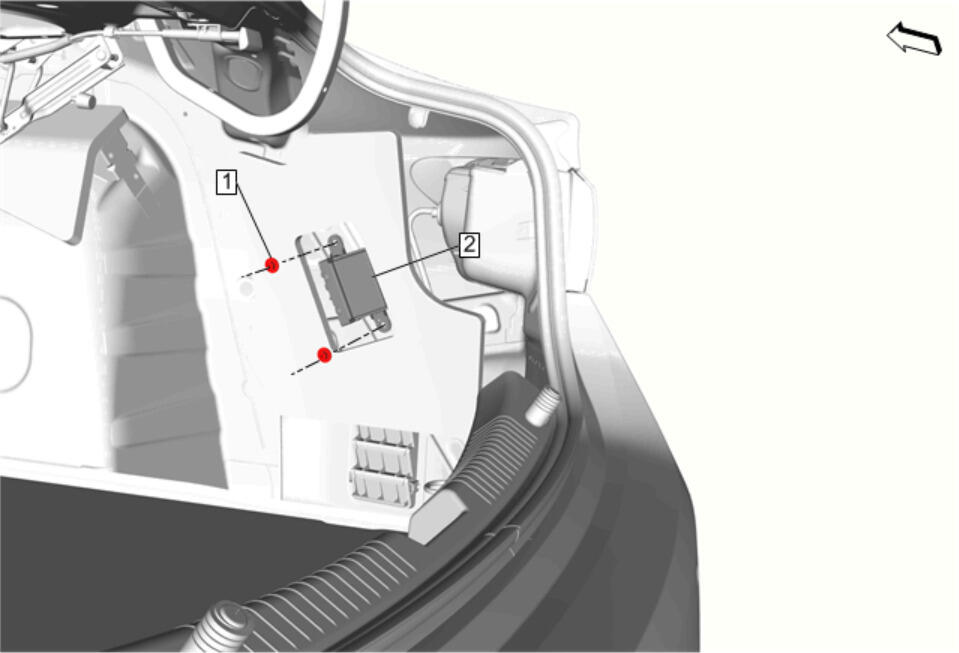

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (Without HP4)Rear Compartment Side Trim Replacement - Right Side (With HP4) - Reposition
1	Rear Object Alarm Control Module Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Rear Object Alarm Control Module Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Rear Object Alarm Control Module Fastener [2x]

CAUTION: Refer to Fastener Caution .

Tighten
4.5 N.m (40 lb in)

Rear Object Alarm Control Module

Procedure
