Communication Interface Module Replacement

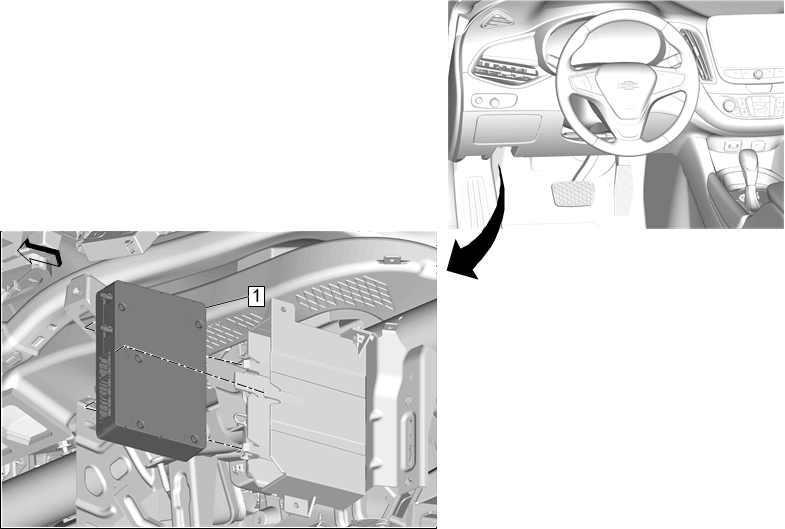

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Communication Interface Module Battery Replacement
1	Communication Interface Module Procedure Push the 3 retaining tabs outward and slide the module downward. Disconnect the electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Communication Interface Module

Procedure
