Rear Toe Adjustment

Measure the alignment angles and record the readings. Refer to Wheel Alignment Measurement .
Rear Suspension Adjust Link Nut (1)» Remove - Adjust Link Replacement

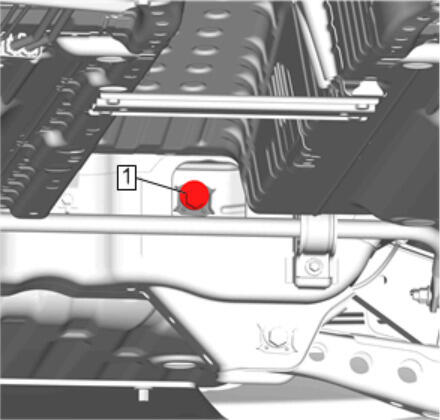

Fig 1: Rear Suspension Adjust Link Nut
Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Adjust Link Inner Bolt» Remove - Adjust Link Replacement

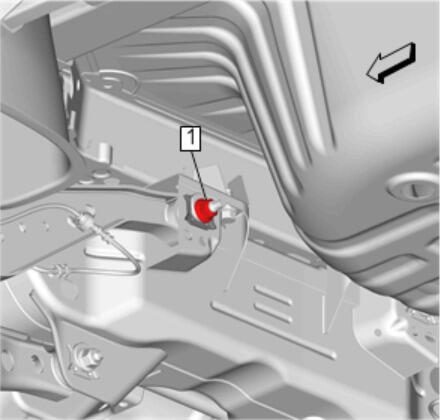

Fig 2: Rear Suspension Adjust Link Inner Bolt
Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Adjust Link Inner Bolt» Install - Adjust Link Replacement
Rear Suspension Adjust Link Nut (1)» Install - Adjust Link Replacement Do not fully tighten at this time.
Rotate the rear suspension adjust link inner bolt (1) until the proper toe measurement is achieved. Refer to Wheel Alignment Specifications .

Fig 3: Rear Suspension Adjust Link Inner Bolt
Courtesy of GENERAL MOTORS COMPANY

NOTE: Tighten the rear suspension adjust link nut enough to maintain the adjustment. Verify the rear toe reading prior to tightening the bolt to its final torque.
Hold the rear suspension adjust link inner bolt and tighten the rear suspension adjust link nut (1). Refer to Adjust Link Replacement
CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

CAUTION: Refer to Fastener Caution .

Fig 4: Rear Suspension Adjust Link Nut
Courtesy of GENERAL MOTORS COMPANY
Check the alignment specification and readjust if necessary. Refer to Wheel Alignment Specifications
