Headlamp Control Module Replacement

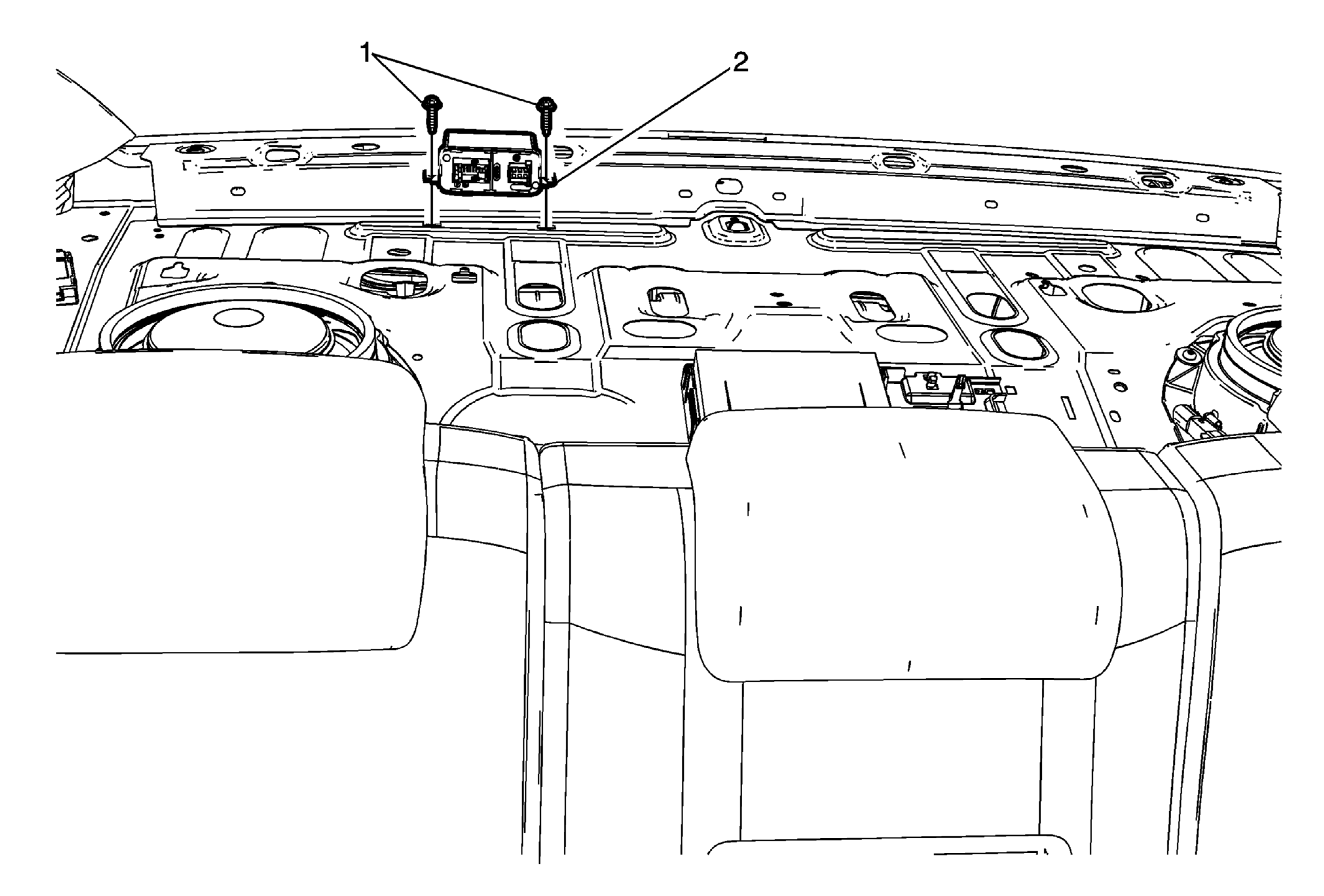

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement .
1	Headlamp Control Module Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Headlamp Control Module Procedure Disconnect the electrical connector. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement .

Headlamp Control Module Fasteners (Qty: 2)

CAUTION:

Headlamp Control Module

Procedure
