Fan Control Module Replacement

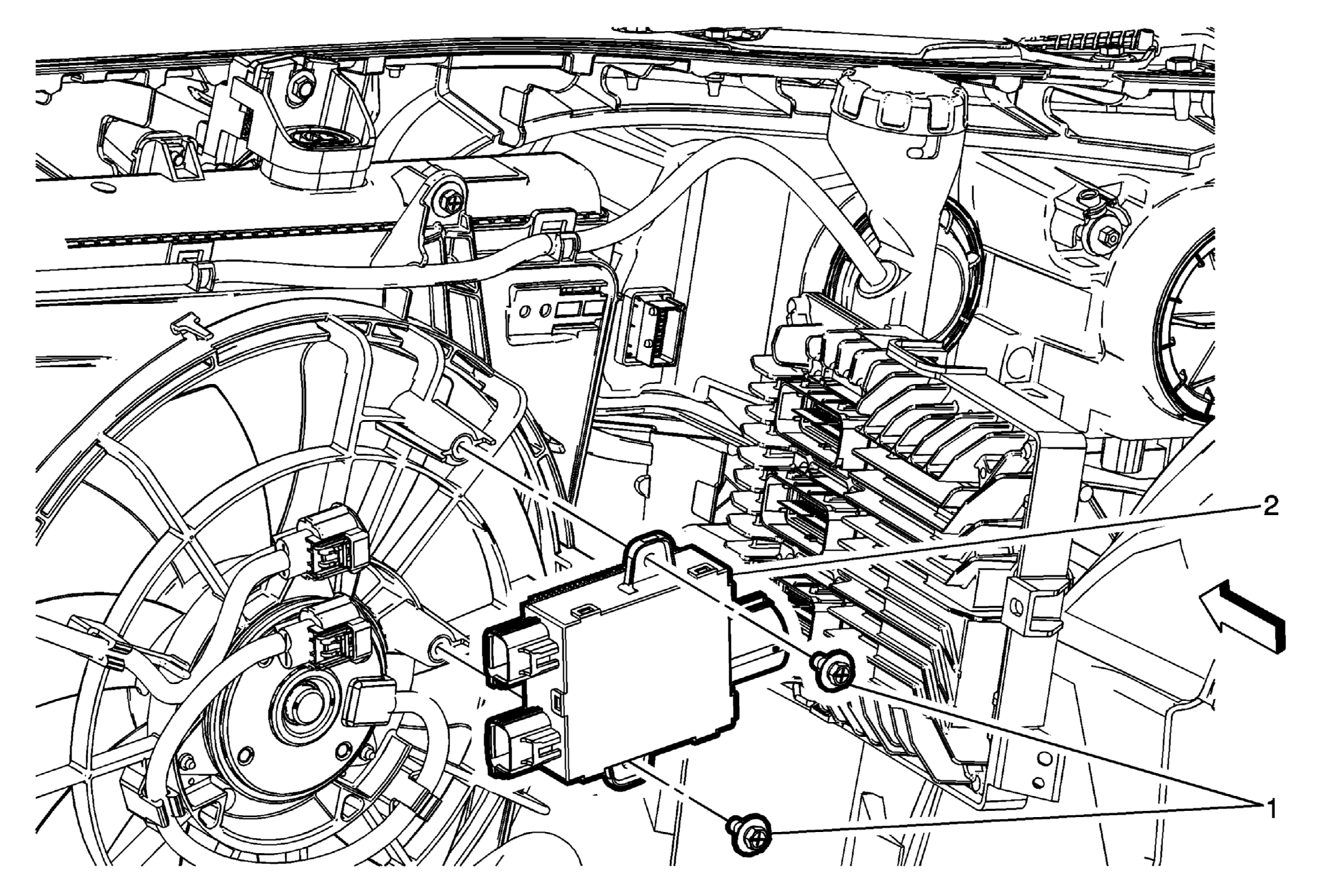

Fig 1: Fan Control Module
GM2967620Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fan Control Module Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Fan Control Module
Procedure
Disconnect the electrical connectors.
