Electronic Suspension Control Module Bracket Replacement

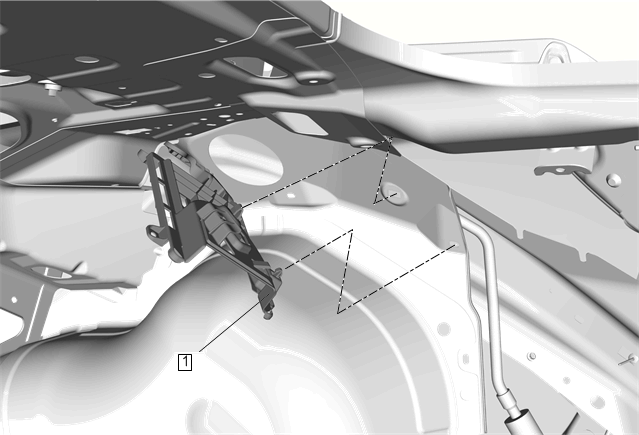

Fig 1: Electronic Suspension Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the Electronic Suspension Control Module. Electronic Suspension Control Module Replacement
1	Electronic Suspension Control Module Bracket Procedure Release the locking tabs that hold the bracket to the body.

Callout

Component Name

Preliminary Procedure

Remove the Electronic Suspension Control Module. Electronic Suspension Control Module Replacement

Electronic Suspension Control Module Bracket
Procedure
Release the locking tabs that hold the bracket to the body.
