Ride Control Switch Replacement

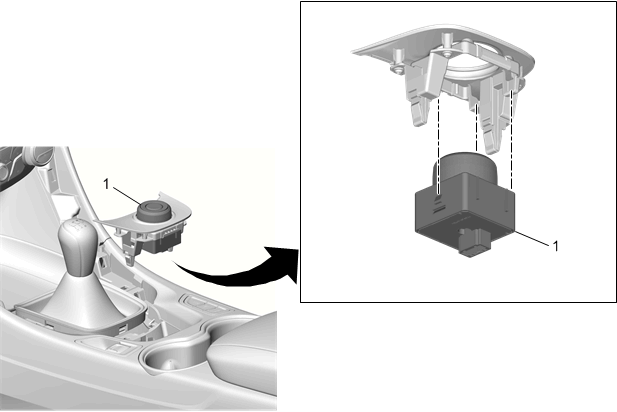

Fig 1: Ride Control Switch
GM4179003Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Accessory Switch Mount Plate Replacement (Left and Right)Front Floor Console Accessory Switch Mount Plate Replacement (Center) - Center
1 Ride Control Switch
Procedure
Release the plastic retaining tabs.
