Front Object Alarm Sensor Wiring Harness Replacement

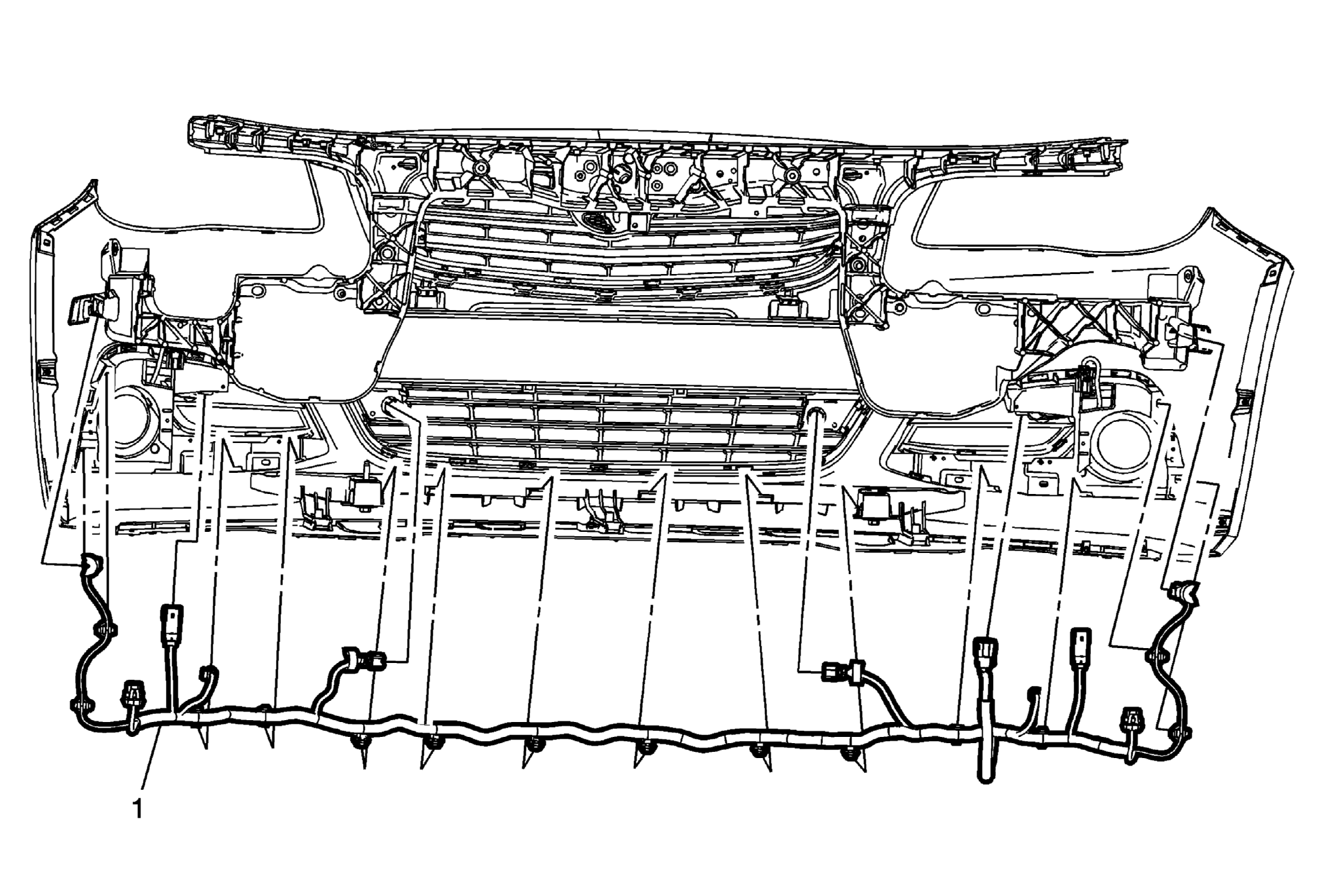

Fig 1: Front Object Alarm Sensor Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Object Alarm Sensor Wiring Harness Procedure Disconnect the front object alarm sensor wiring harness electrical connectors from the front object sensors. Using a suitable tool, disconnect the retainers of the front object alarm sensor wiring harness from the front fascia.

Callout

Component Name

Preliminary Procedures
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Front Object Alarm Sensor Wiring Harness

Procedure

Disconnect the front object alarm sensor wiring harness electrical connectors from the front object sensors.
Using a suitable tool, disconnect the retainers of the front object alarm sensor wiring harness from the front fascia.
