Parking Assist Control Module Replacement

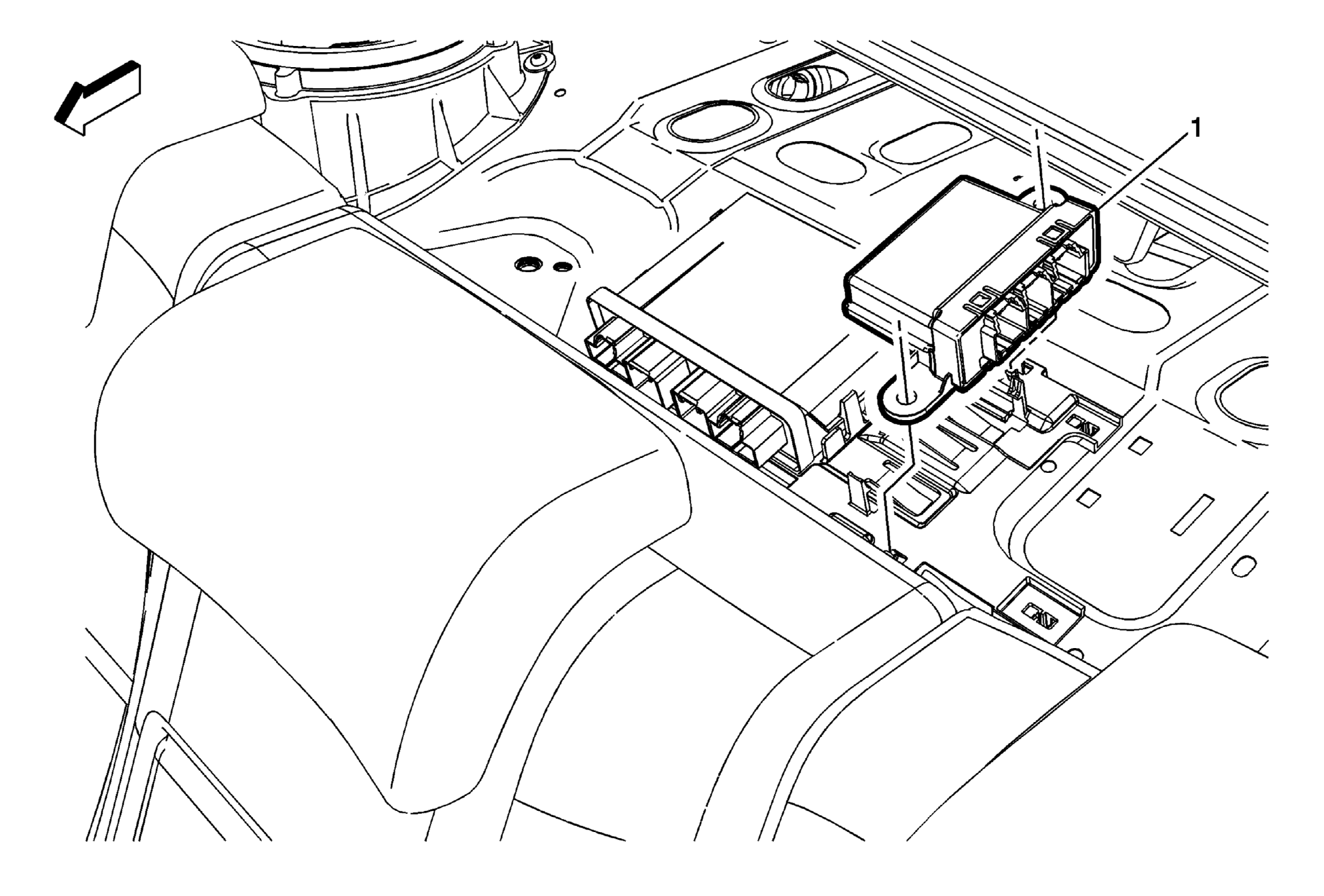

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement .
1	Rear Object Alarm Control Module Procedure Disconnect the electrical connectors. Release module from retaining tabs on bracket. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement .

Rear Object Alarm Control Module

Procedure
