Communication Interface Module Replacement

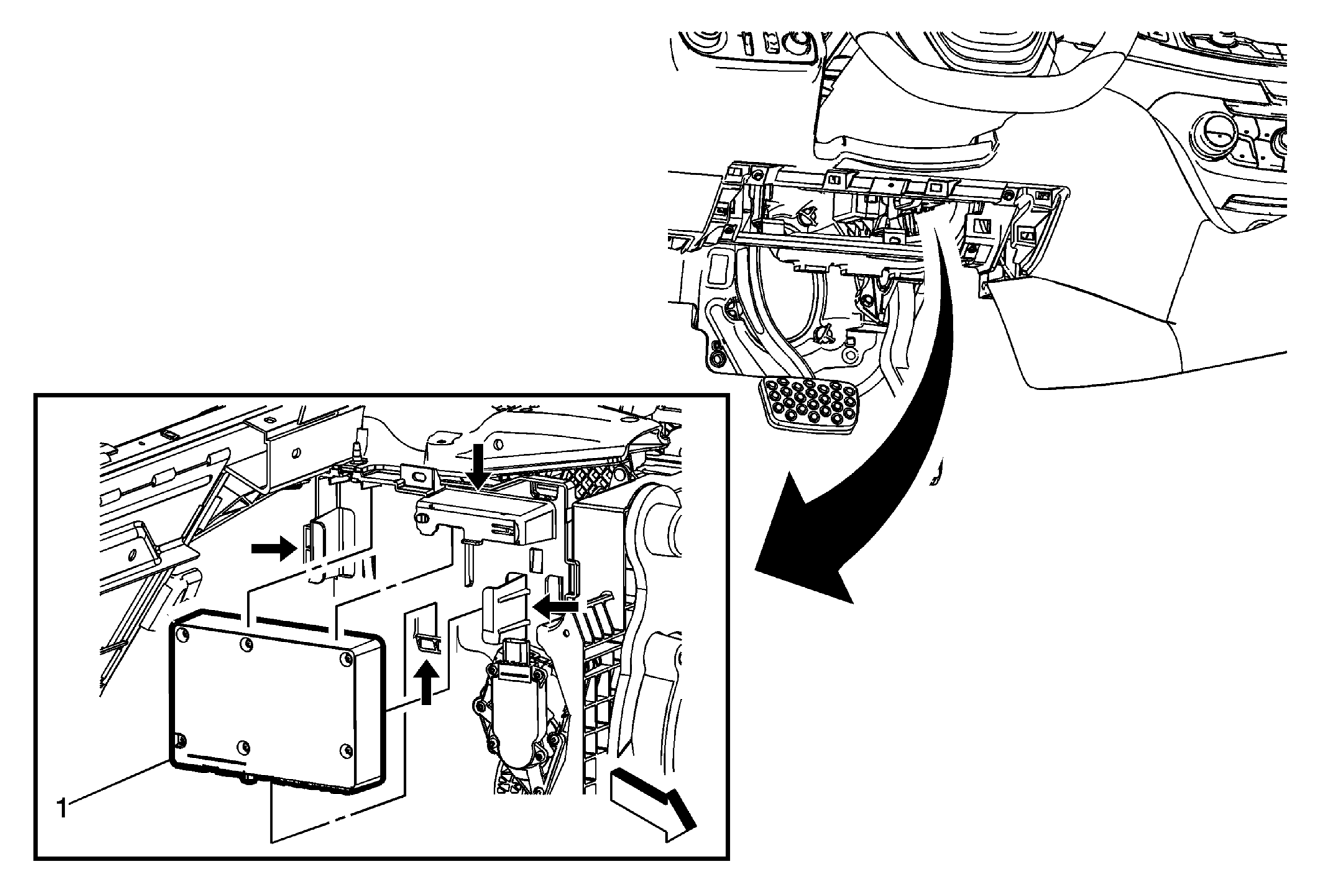

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement .
1	Communication Interface Module Procedure Disconnect the electrical connectors. Remove the module from the four tabs on the bracket. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement .

Communication Interface Module

Procedure
