Remote Control Door Lock Receiver Replacement

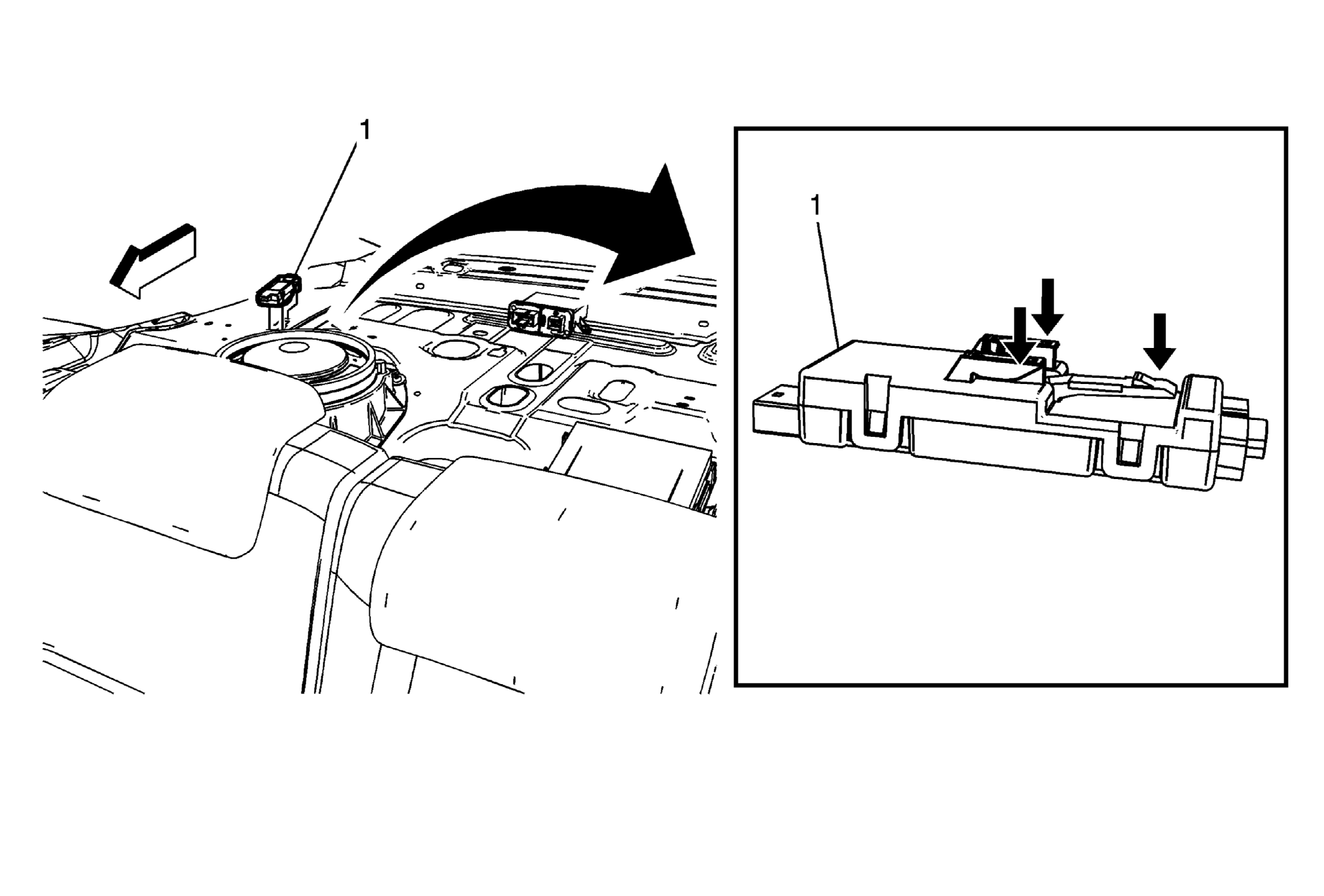

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector and the remote control door lock receiver antenna. Slide the receiver rearward to release.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector and the remote control door lock receiver antenna.
Slide the receiver rearward to release.
