Outside Rearview Mirror Glass Replacement

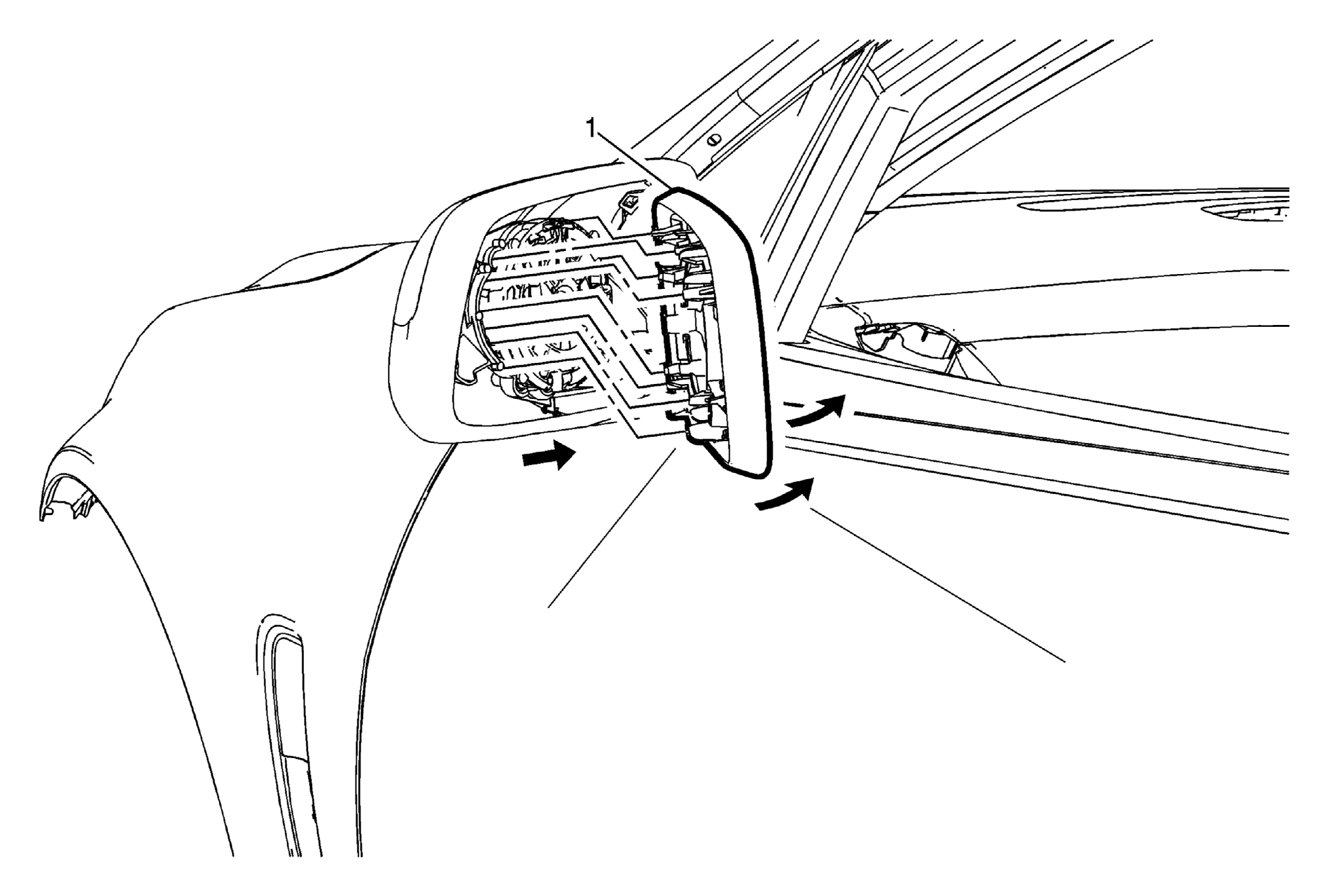

Fig 1: Outside Rearview Mirror Glass
GM2915511Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Outside Rearview Mirror Glass
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Procedure

  1. Grasp the outer edge of the mirror glass and release it from the backing by pulling outward.
  2. Disconnect electrical connector.
NOTE:

Inspect the outside rearview mirror for proper operation.
