Front Side Door Window Control Switch Replacement (Passenger Side)

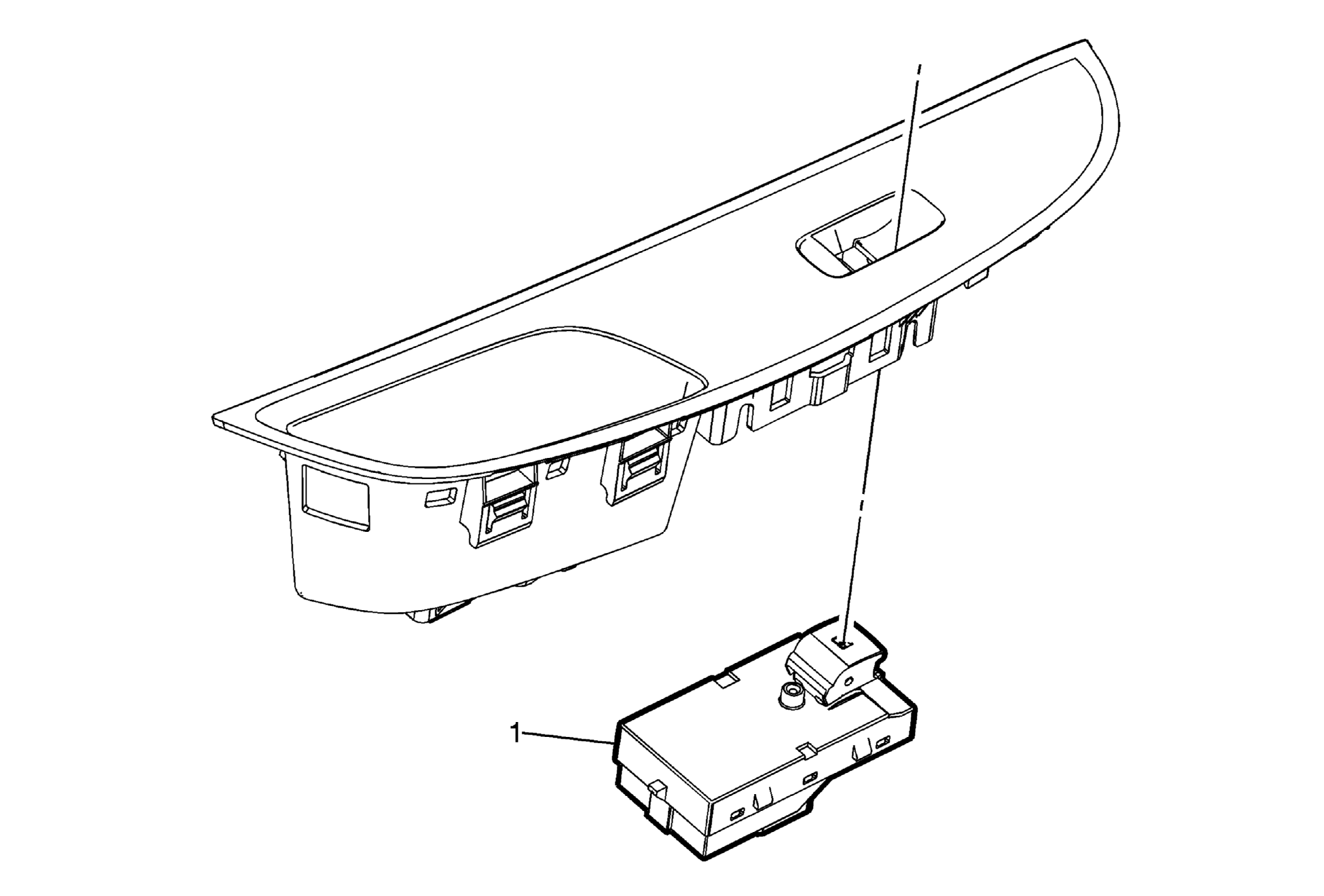

Fig 1: Front Side Door Window Control Switch (Passenger Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the passenger side front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Passenger Side .
1	Front Side Door Window Control Switch Assembly Procedure Release tabs on switch to remove from front side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the passenger side front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Passenger Side .

Front Side Door Window Control Switch Assembly

Procedure

Release tabs on switch to remove from front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
