Front Side Door Window Frame Rear Applique Replacement

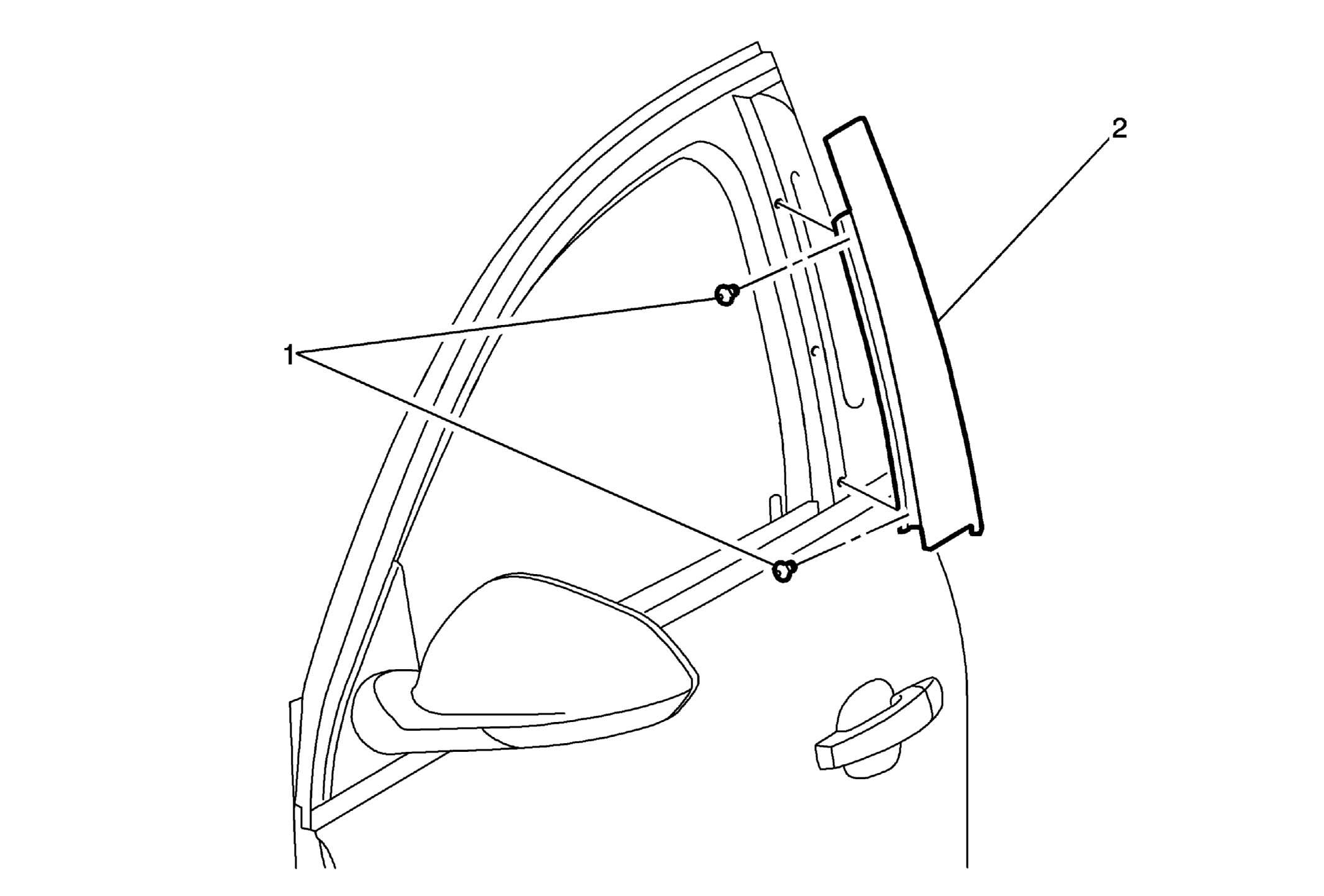

Fig 1: Front Side Door Window Frame Rear Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the door window in the full down position. Remove the front side door window belt outer reveal molding. Refer to Front Side Door Window Belt Outer Reveal Molding Replacement .
1	Front Side Door Window Frame Rear Applique Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Pull the front side door window weatherstrip from the applique to expose the screws. Tighten 2.5 N.m (22 lb in)
2	Front Side Door Window Frame Rear Applique NOTE: Inspect the window for proper operation before installing the front side door window belt outer reveal molding.

Callout

Component Name

Preliminary Procedures

Place the door window in the full down position.
Remove the front side door window belt outer reveal molding. Refer to Front Side Door Window Belt Outer Reveal Molding Replacement .

Front Side Door Window Frame Rear Applique Screw (Qty: 2)

CAUTION:

Procedure
Pull the front side door window weatherstrip from the applique to expose the screws.
Tighten
2.5 N.m (22 lb in)

Front Side Door Window Frame Rear Applique

NOTE:

Inspect the window for proper operation before installing the front side door window belt outer reveal molding.
