Front Side Door Window Guide Replacement

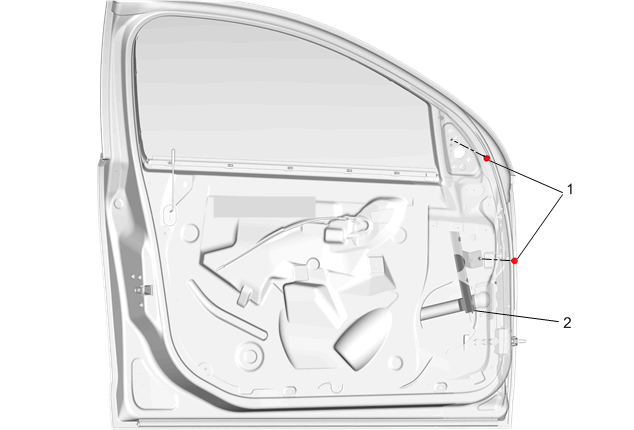

Fig 1: Front Side Door Window Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement .
1	Front Side Door Window Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Place the window in the full closed position. Pull the weatherstrip out from the front side door window guide. Tighten 7 N.m (62 lb in)
2	Front Side Door Window Guide NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedure

Remove the front side door trim. Refer to Front Side Door Trim Replacement .
Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement .

Front Side Door Window Guide Bolt (Qty: 2)

CAUTION:

Procedure

Tighten
7 N.m (62 lb in)

Front Side Door Window Guide

NOTE:

Inspect the window for proper operation before installing the door trim.
