Front Side Door Window Inner Sealing Strip Replacement

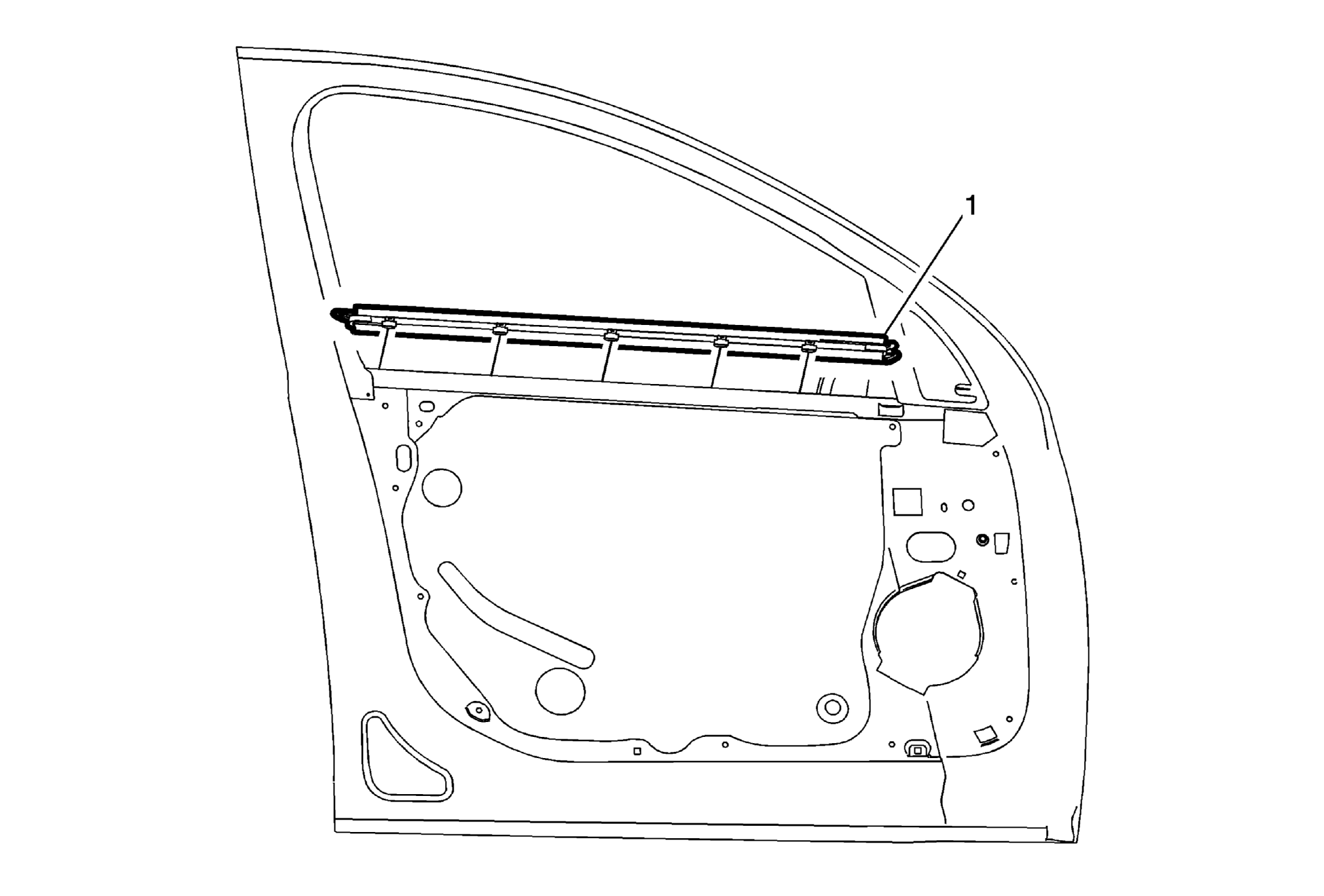

Fig 1: Front Side Door Window Inner Sealing Strip
GM3218023Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement
  2. Remove the front side door frame cover. Refer to Front Side Door Window Frame Cover Replacement
1 Front Side Door Window Inner Sealing Strip

Procedure

  1. Lower the window to the full down position.
  2. Using the appropriate tool, lift one end up and pull away from the door flange to remove.
  3. Install the front side door window inner sealing strip to the door flange pushing downward until fully seated.
NOTE:

Inspect the door window for proper operation.
