Removal Procedure
- Place the window in the full down position.
Courtesy of GENERAL MOTORS COMPANY

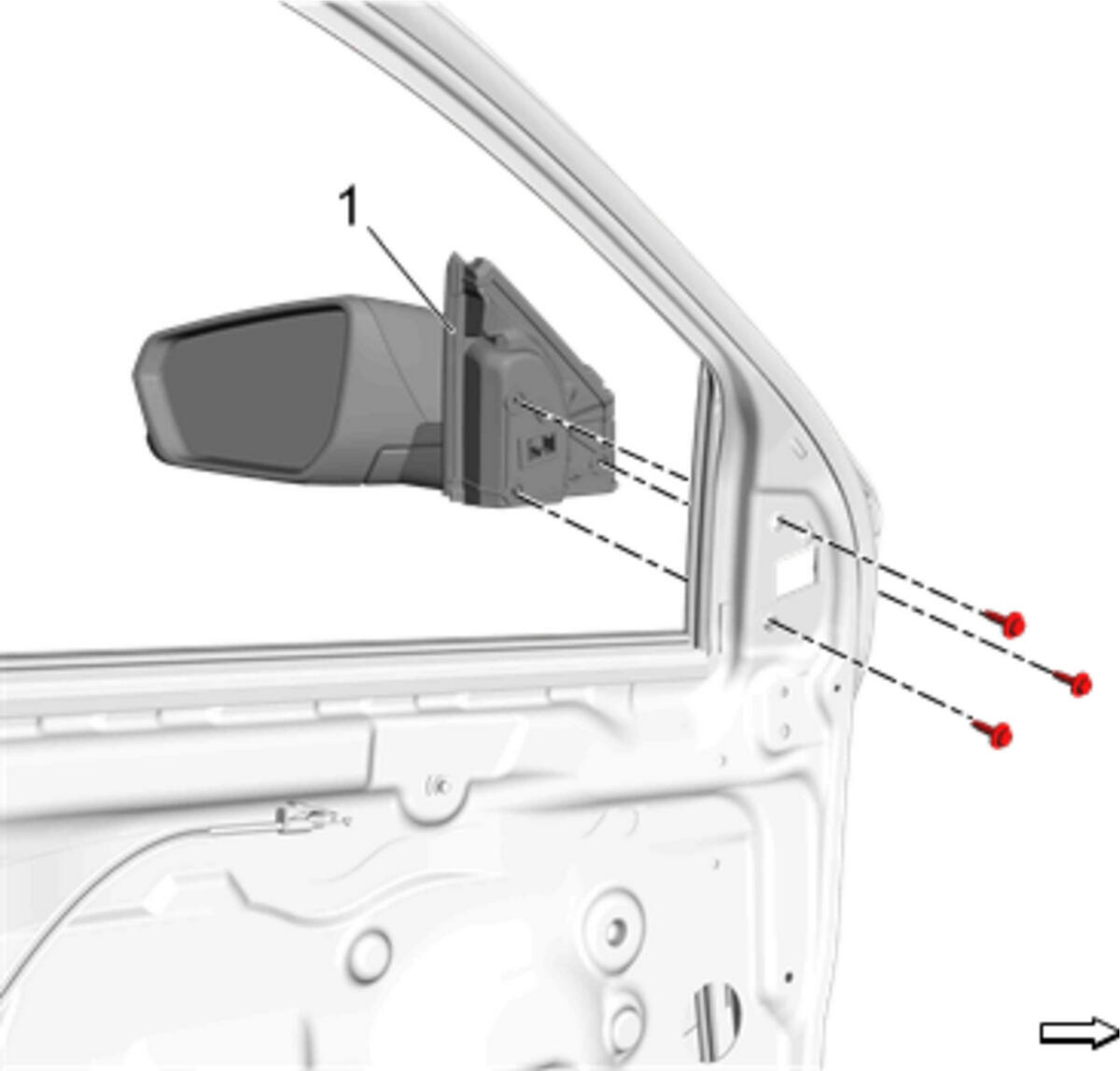

- Remove Outside Rearview Mirror (1) - Outside Rearview Mirror Replacement
Courtesy of GENERAL MOTORS COMPANY

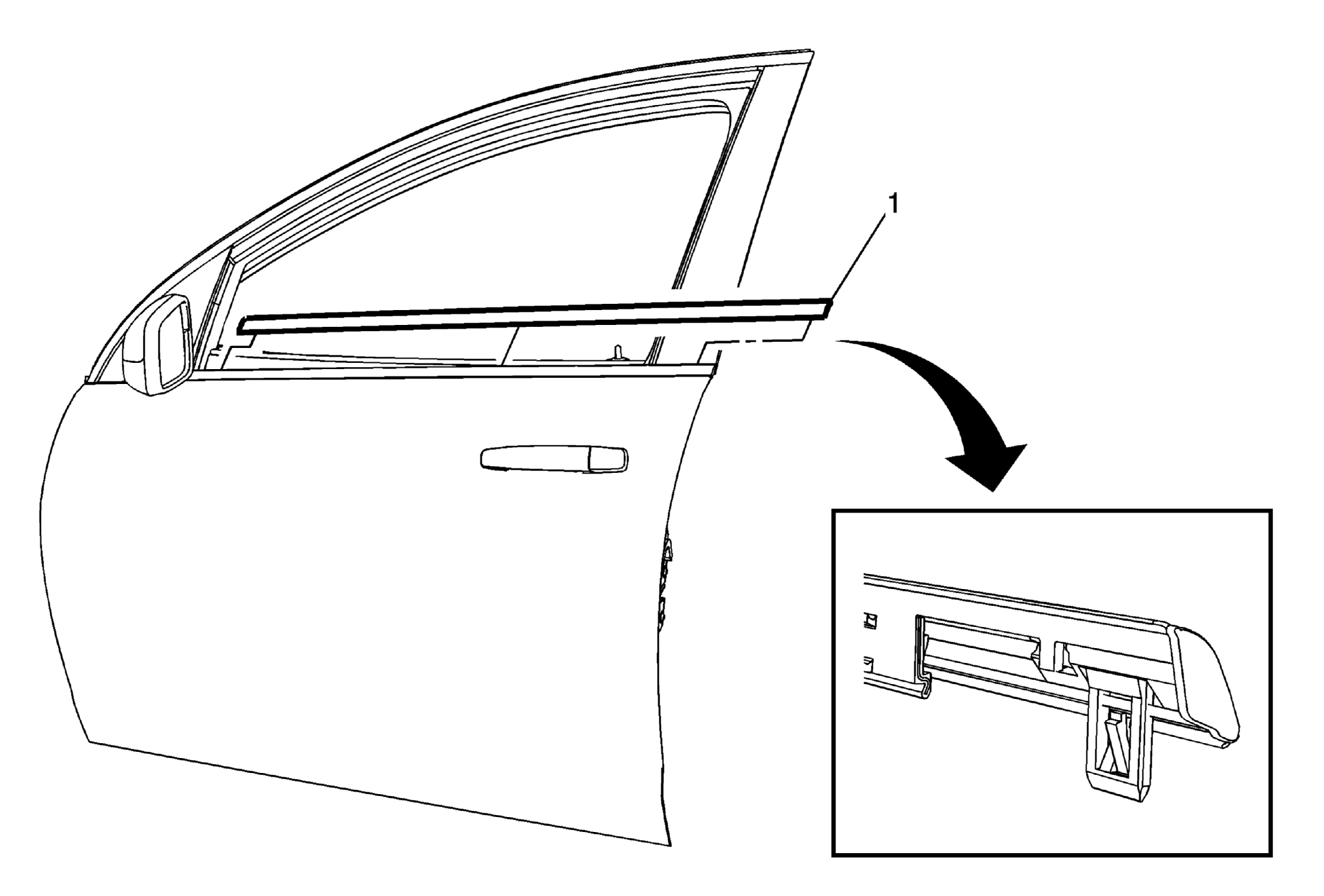

- Remove Front Side Door Window Belt Reveal Molding (1) - Front Side Door Window Belt Outer Reveal Molding Replacement
- Detach the upper half of the water deflector and reposition to gain access to the part.
Courtesy of GENERAL MOTORS COMPANY

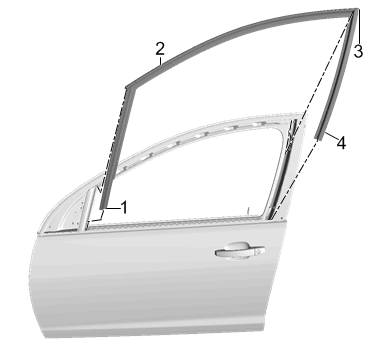

- Grasp both upper corners (3) of the front side door window weatherstrip (2), pull downward releasing the assembly from the door frame and slide weatherstrip (2) up and out of the front and rear guide channels (1, 4).
