Rear Side Door Window Frame Front Applique Replacement

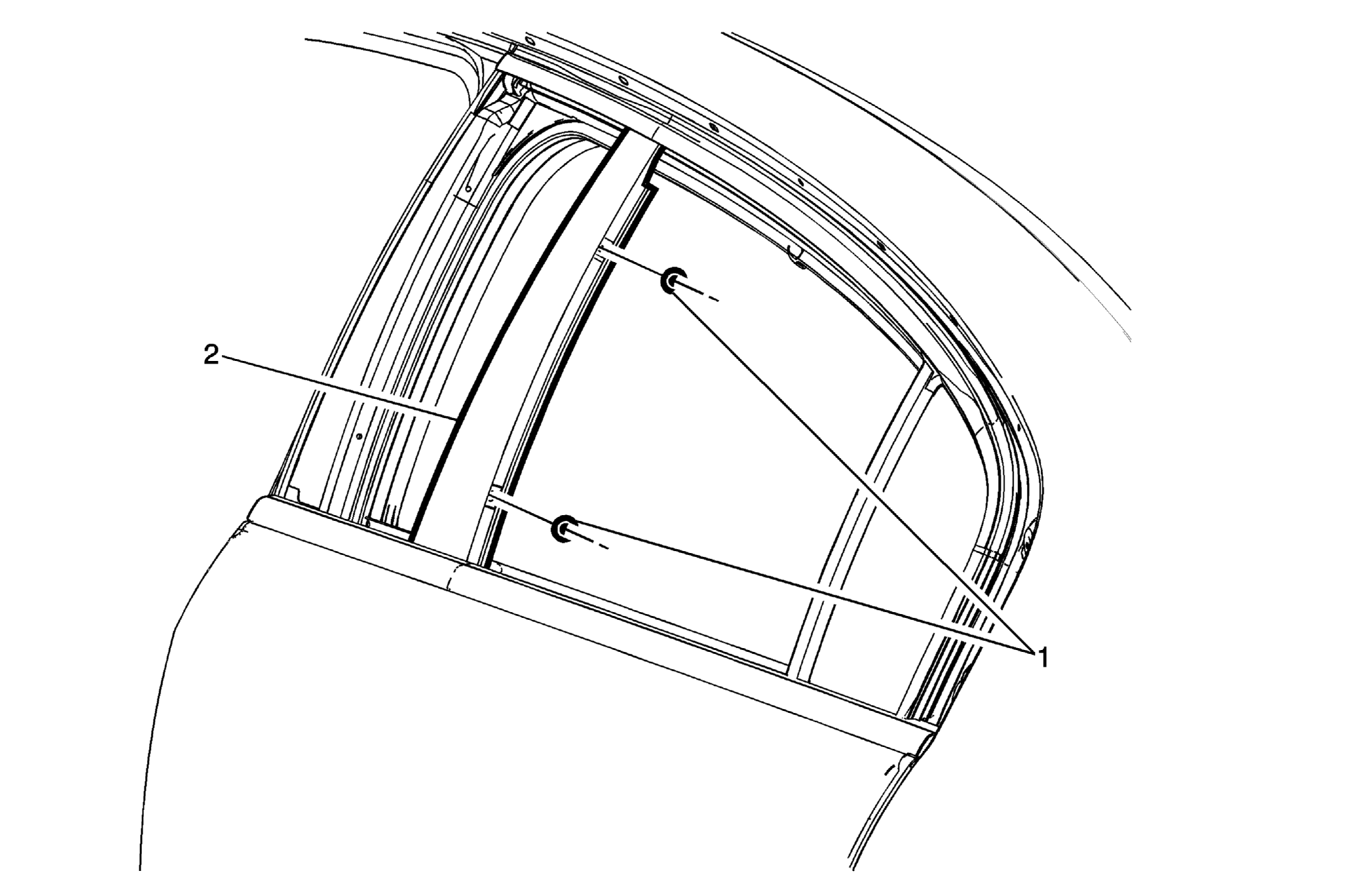

Fig 1: Rear Side Door Window Frame Front Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door molding. Refer to Roof Panel Joint Finish Molding Replacement . Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
1	Rear Side Door Window Frame Front Applique Screw (Qty: 2) CAUTION: Refer to Fastener Caution Procedure Pull the rear side door window weatherstrip from the applique to expose the screws. Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Window Frame Front Applique NOTE: Inspect the window for proper operation before installing the rear side door window belt reveal molding.

Callout

Component Name

Preliminary Procedures

Remove the rear side door molding. Refer to Roof Panel Joint Finish Molding Replacement .
Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .

Rear Side Door Window Frame Front Applique Screw (Qty: 2)

CAUTION:

Procedure
Pull the rear side door window weatherstrip from the applique to expose the screws.
Tighten
2.5 N.m (22 lb in)

Rear Side Door Window Frame Front Applique

NOTE:

Inspect the window for proper operation before installing the rear side door window belt reveal molding.
