Rear Side Door Window Regulator Replacement

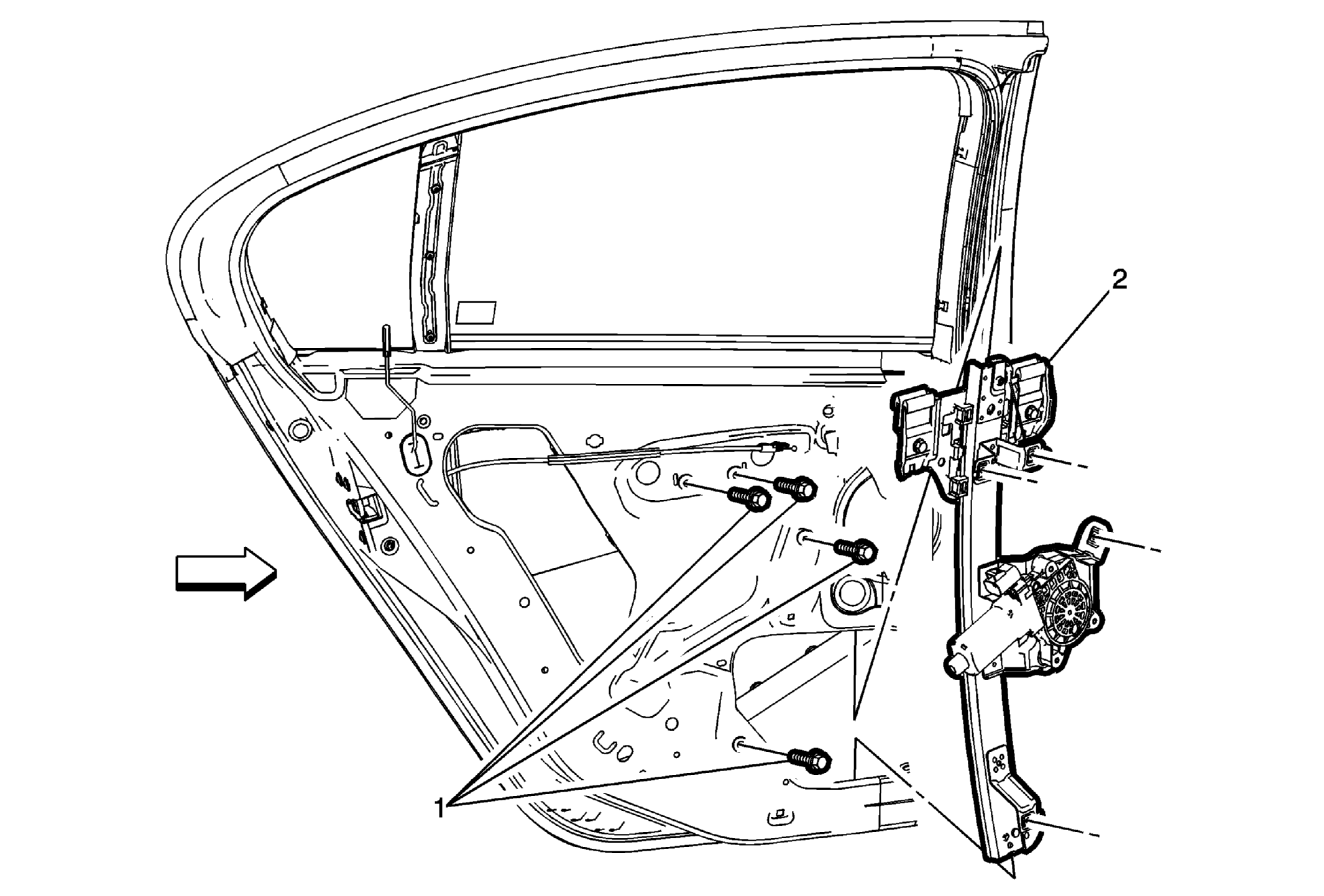

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door water deflector.
1	Rear Side Door Window Regulator Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Loosen the window guide bolts, Do Not remove the bolts from the guide. Remove the rear side door window from the guide. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Disconnect the door electrical connector. Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Procedure Transfer the rear side door window regulator motor. Refer to Rear Side Door Window Regulator Motor Replacement . NOTE: Inspect the rear side door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Preliminary Procedures

Rear Side Door Window Regulator Bolt (Qty: 4)

CAUTION:

Procedure

Loosen the window guide bolts, Do Not remove the bolts from the guide.
Remove the rear side door window from the guide.
Do Not remove the window from the vehicle, raise the window to the full up position, tape in place.
Disconnect the door electrical connector.

Tighten
11 N.m (97 lb in)

Rear Side Door Window Regulator
Procedure
Transfer the rear side door window regulator motor. Refer to Rear Side Door Window Regulator Motor Replacement .

NOTE:

Inspect the rear side door window for proper operation before installing the door trim.
