WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
Preliminary Procedures
- Remove the rear side door trim. Refer to Rear Side Door Trim Replacement
.
- Remove the rear side door stationary window channel. Refer to Rear Side Door Stationary Window Channel Replacement .
- Remove the rear side window inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement .
- Remove the rear side window frame cover. Refer to Rear Side Door Window Frame Cover Replacement
.
|

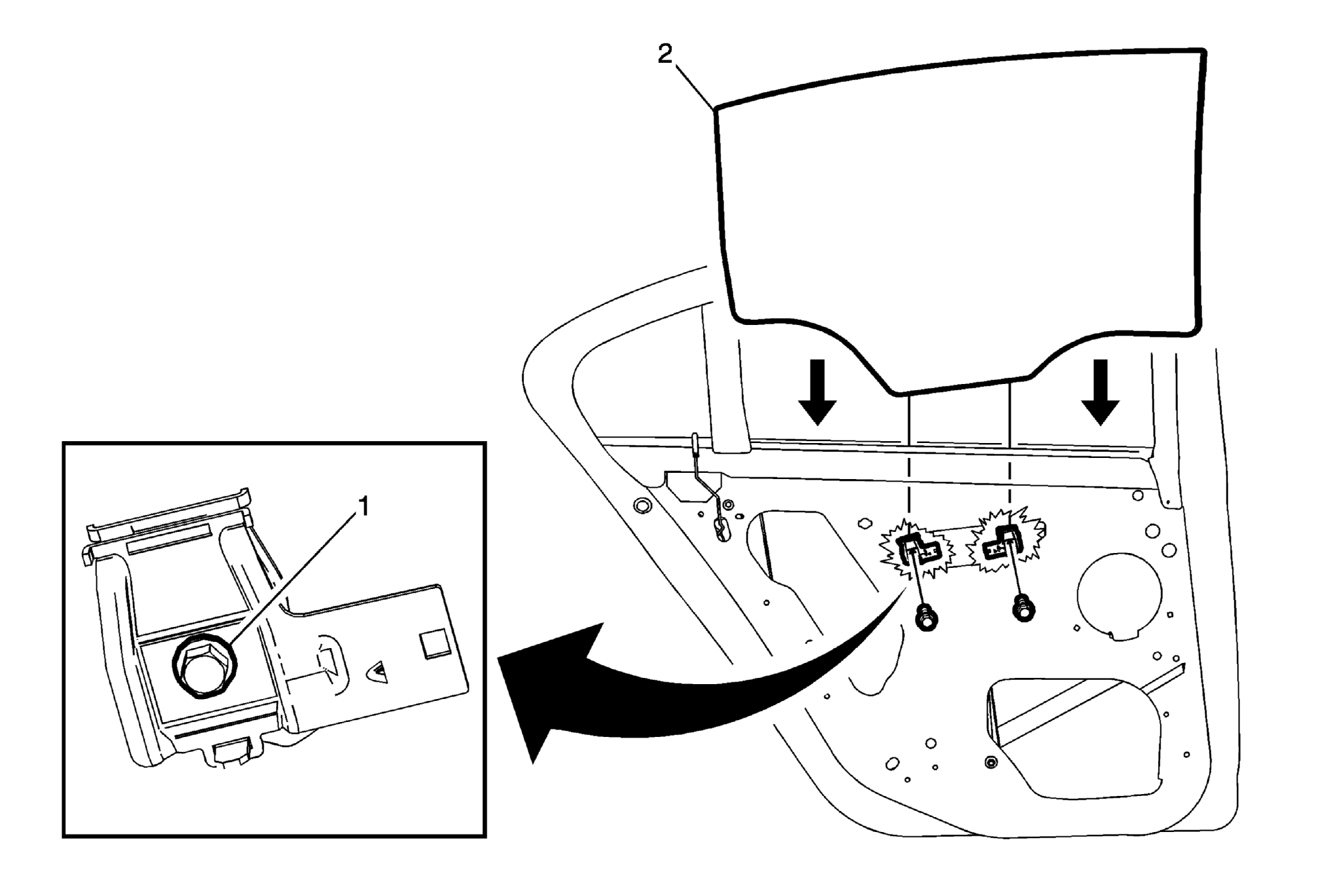

| 1 |
Rear Side Door Window Regulator Guide Bolt (Qty: 2)
Procedure
- Use masking tape, tape off the outer door frame and applique to prevent scratching.
- Remove the rear side door water deflector.
- Loosen bolts on the guide so that the window can be removed.
- In order to remove the window out of the frame, carefully grasp and tilt the window as you guide the window up and forward.
Tighten
11 N.m (97 lb in) |
| 2 |
Rear Side Door Window Procedure
- Align the window guide with the access holes in the inner door panel.
- Install the window to the guide.
- Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor.
- Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the guide. Tighten the bolts to the window guide.
NOTE:
Inspect the window for proper operation before installing the door trim.
|
