Installation Procedure

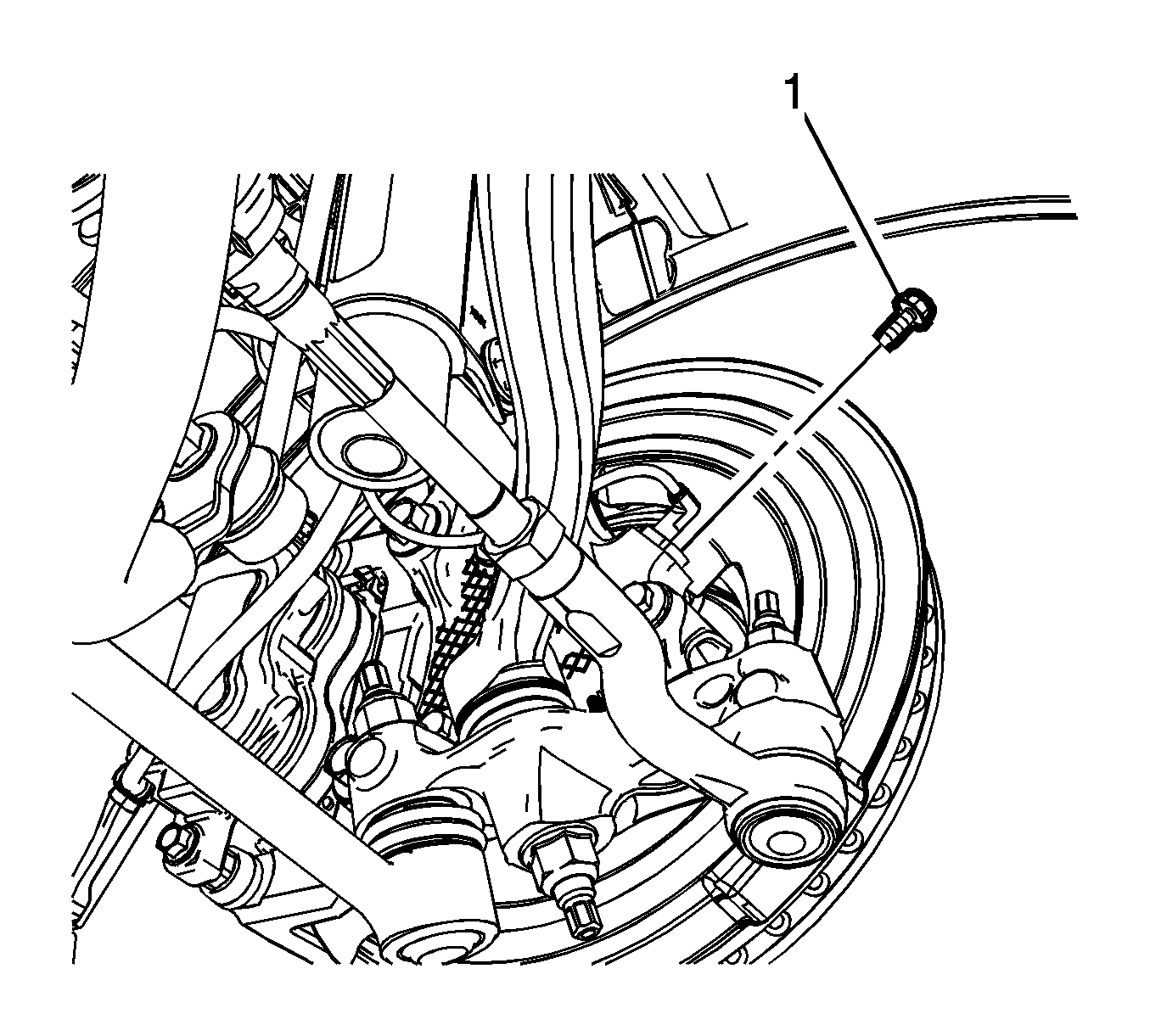

    Fig 1: Wheel Speed Sensor Bolt
    GM2916657Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor assembly to the steering knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

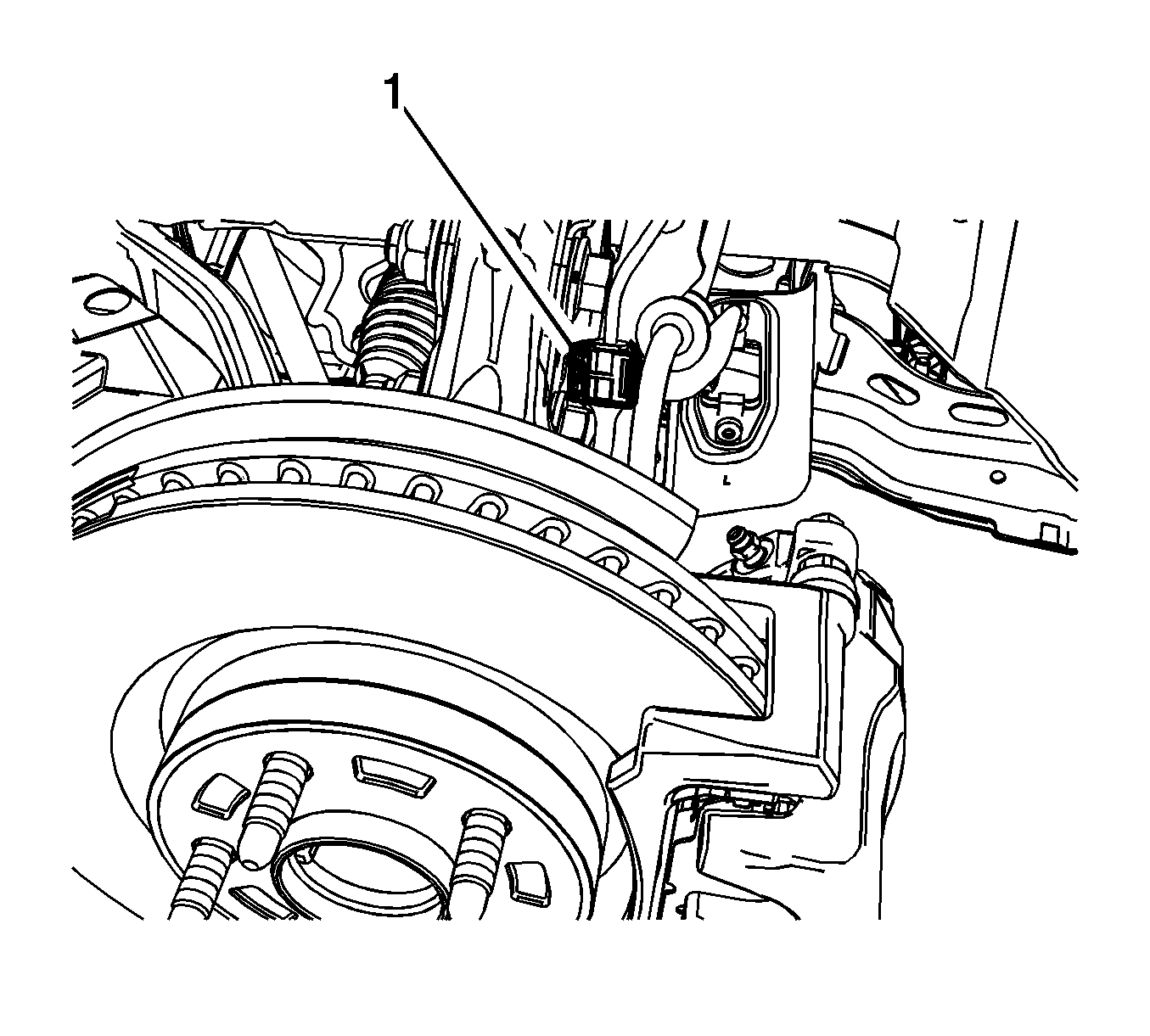

    3. Fig 2: Wheel Speed Sensor Harness Clip
    GM2916655Courtesy of GENERAL MOTORS COMPANY
  3. Secure the wheel speed sensor harness to the clip (1) on the suspension strut.

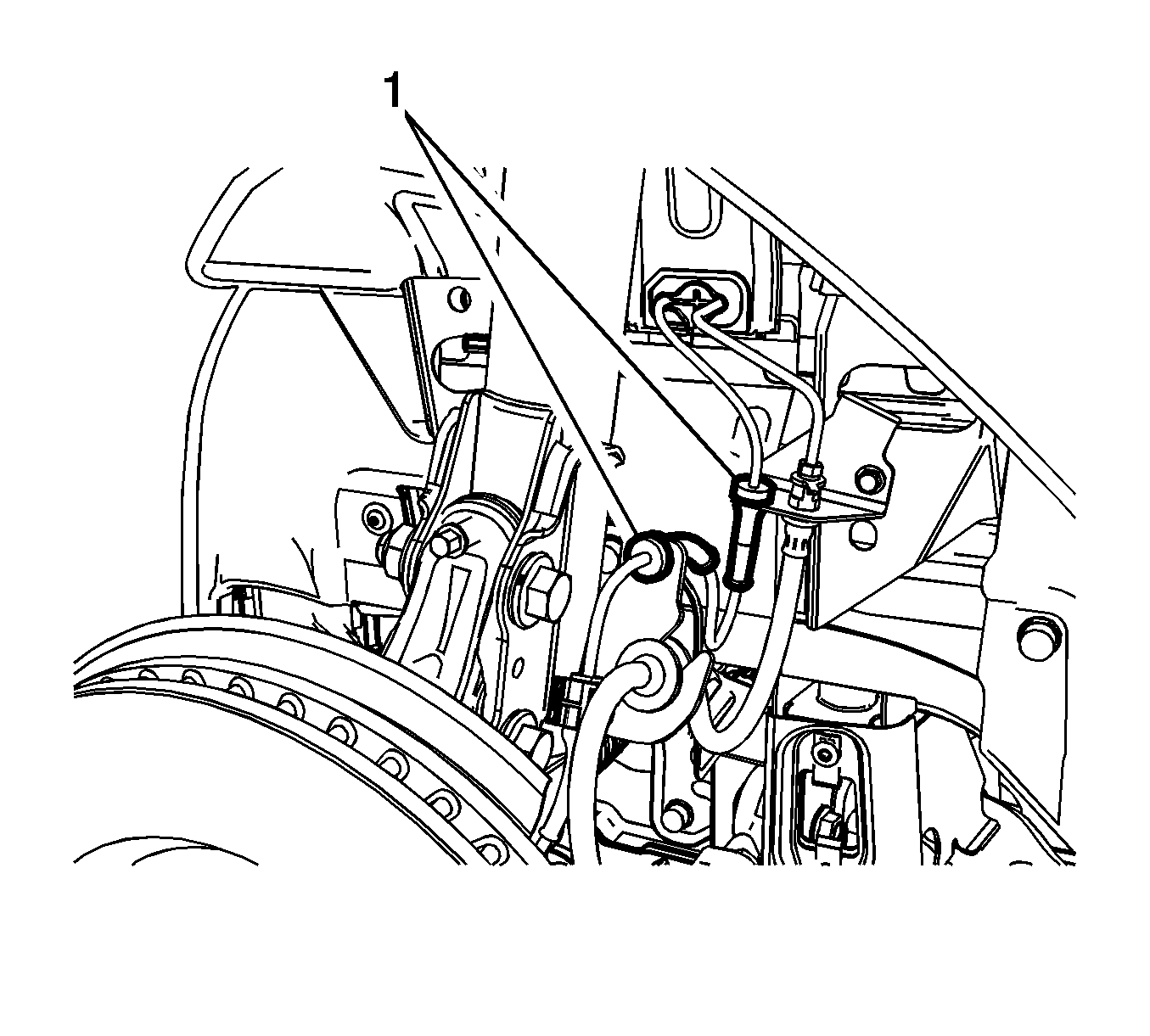

    4. Fig 3: Wheel Speed Sensor Harness Grommets
    GM2916653Courtesy of GENERAL MOTORS COMPANY
  4. Secure the wheel speed sensor harness grommets (1) to the brake hose bracket and the suspension strut.
  5. Feed the wheel speed sensor electrical connector and harness through the wheel house panel closeout.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
  8. From inside the engine compartment, connect the front wheel speed sensor electrical connector.
  9. Perform the Diagnostic System Check - Vehicle .
