Installation Procedure

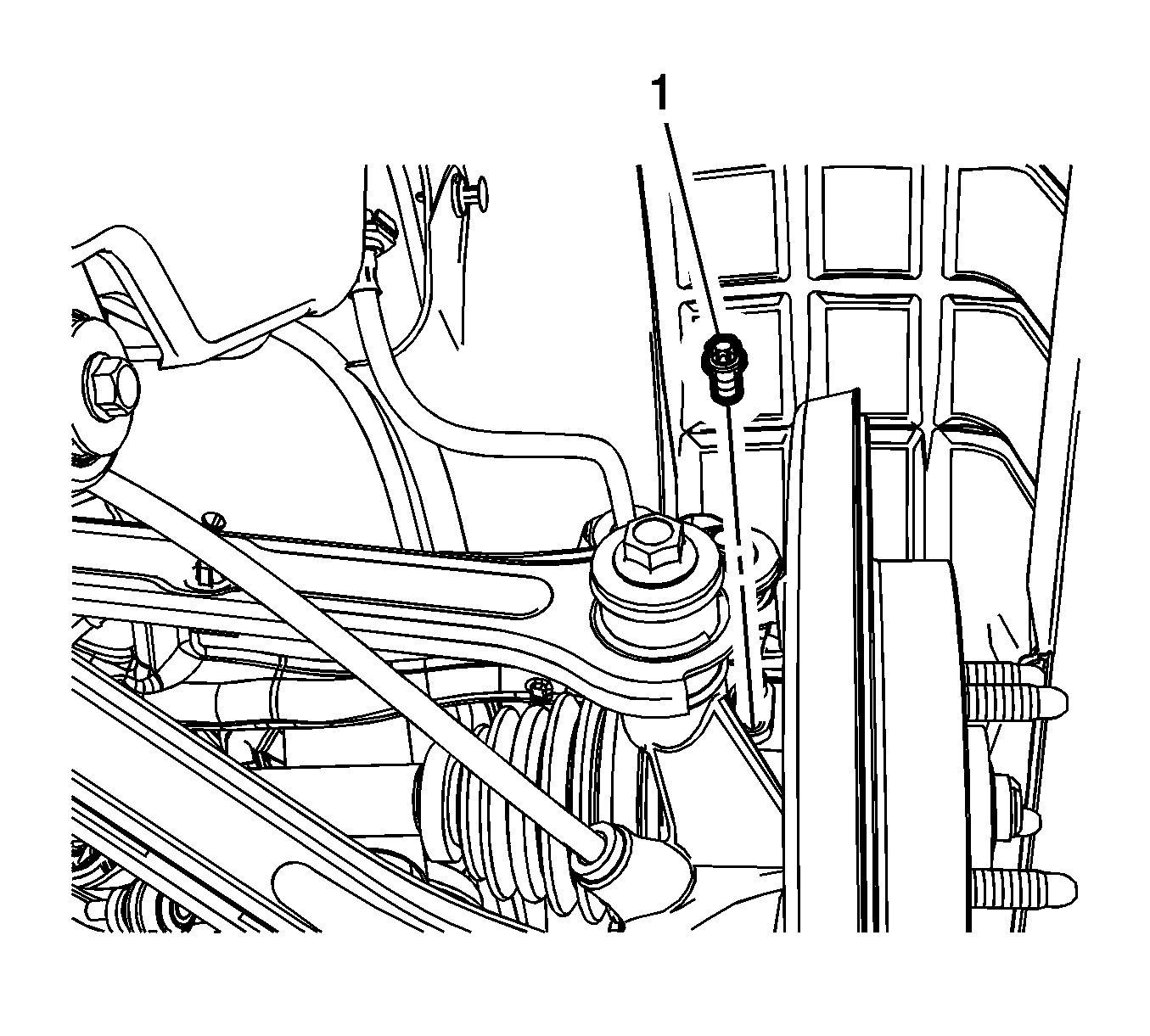

    Fig 1: Wheel Speed Sensor Bolt
    GM2916780Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor assembly to the suspension knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

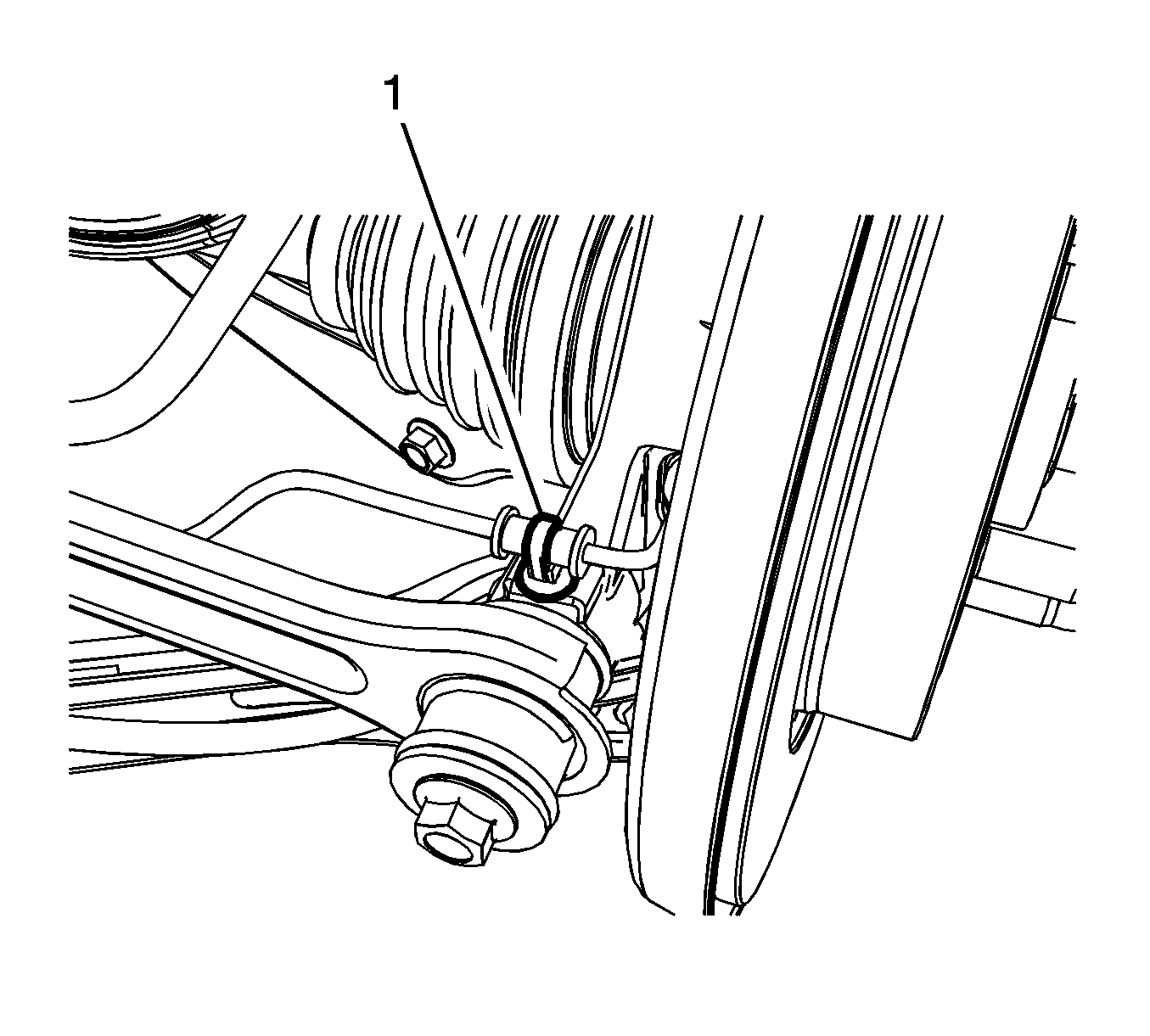

    3. Fig 2: Wheel Speed Sensor Harness Clip
    GM2916779Courtesy of GENERAL MOTORS COMPANY
  3. Secure the wheel speed sensor harness to the clip (1) on the rear suspension knuckle.

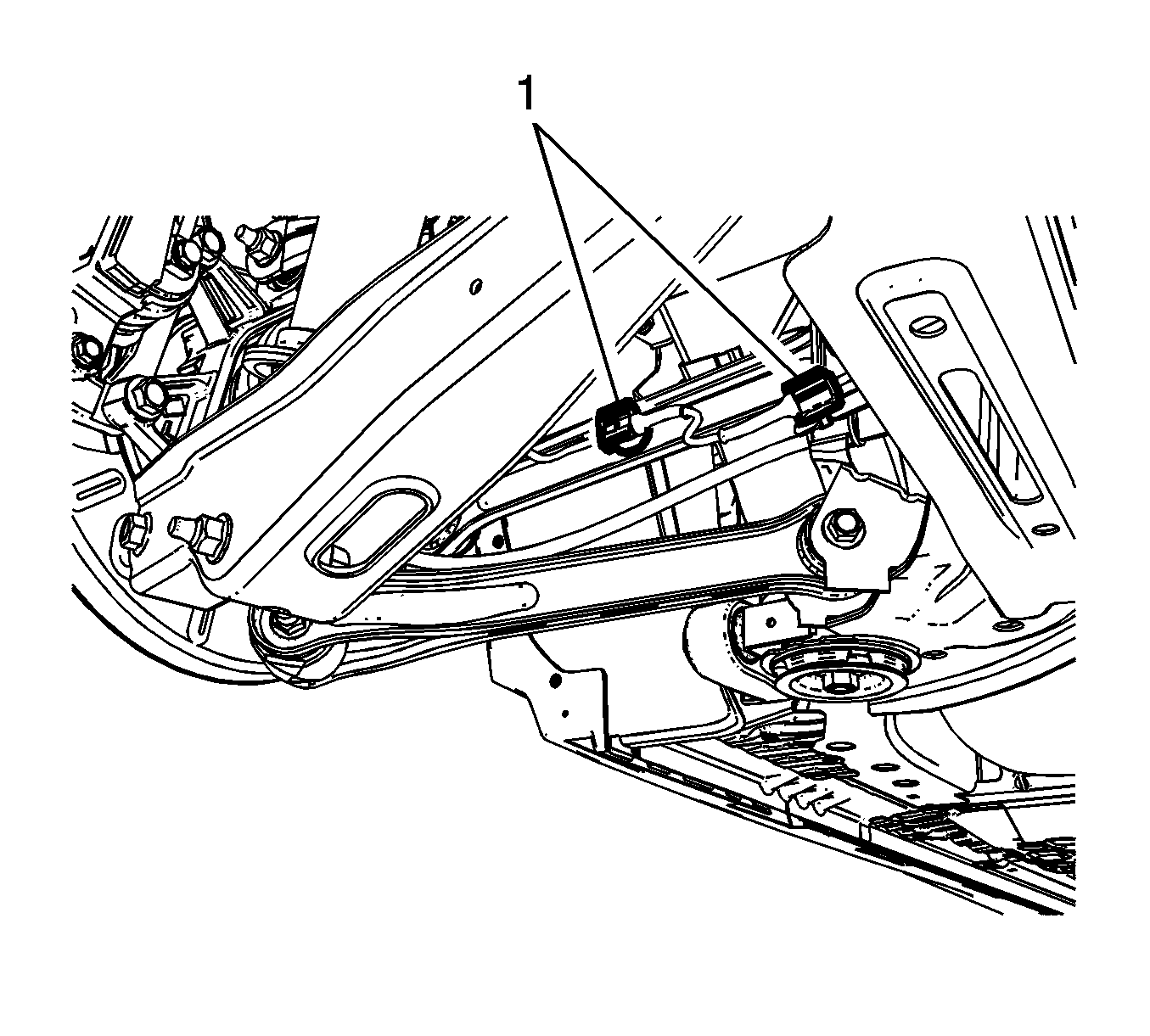

    4. Fig 3: Wheel Speed Sensor Harness Clips
    GM2916778Courtesy of GENERAL MOTORS COMPANY
  4. Connect the rear wheel speed sensor electrical connector and secure the harness clips (1).
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Perform the Diagnostic System Check - Vehicle .
