Steering Angle Sensor Replacement

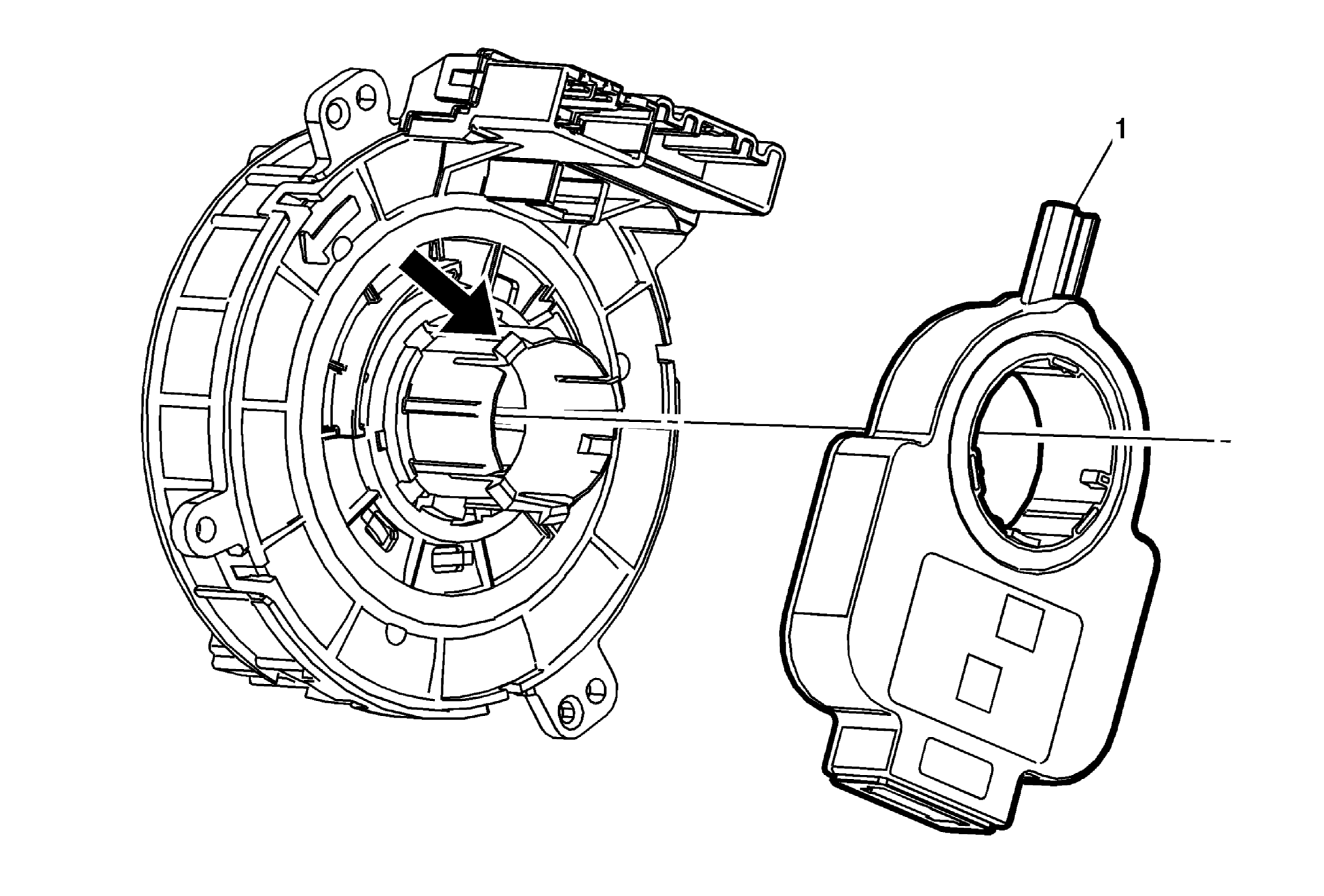

Fig 1: Steering Angle Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Coil Replacement
1	Steering Angle Sensor Procedure Press in the retaining tabs on the steering wheel airbag coil and remove the steering angle sensor. Center the steering angle sensor. Steering Wheel Angle Sensor Centering

Callout

Component Name

Steering Angle Sensor

Procedure

Press in the retaining tabs on the steering wheel airbag coil and remove the steering angle sensor.
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
