Module Power, Ground, Serial Data, and Traction Control

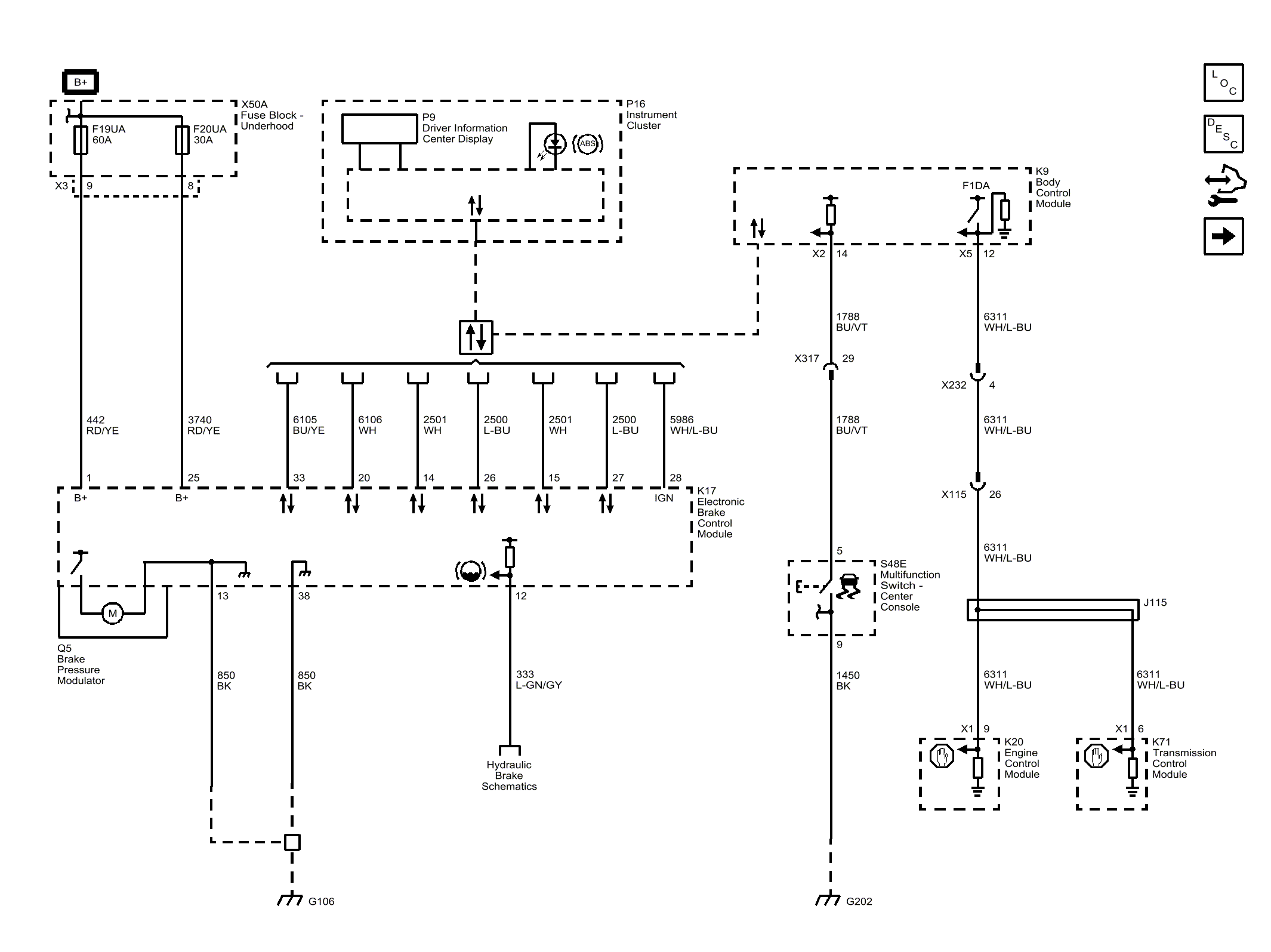

Fig 1: Module Power, Ground, Serial Data, and Traction Control
GM4533491Courtesy of GENERAL MOTORS COMPANY
